SPECIFICATIONS

Aerial Photography: Yes

Aircraf Operating Frequency: 5.8 GHz

Brand Name: NoEnName_Null

Camera Features: 720p HD Video Recording

Camera Integration: Camera Included

Camera Mount Type: Other

Category: Camera Drone

Connectivity: Remote Control

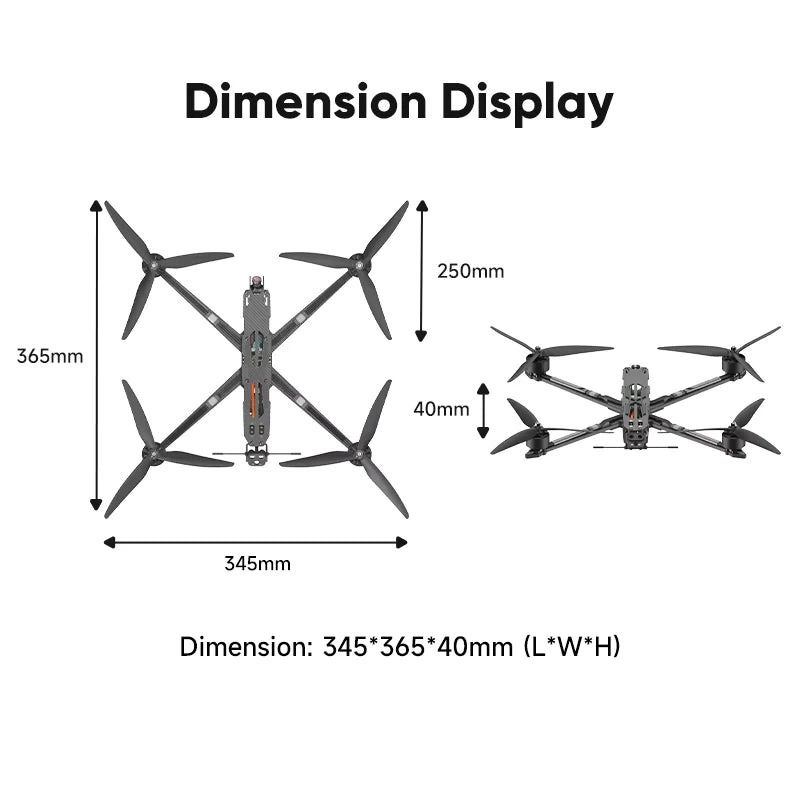

Dimensions (Length * Width * Height): 345*365*40mm

Display Control: No

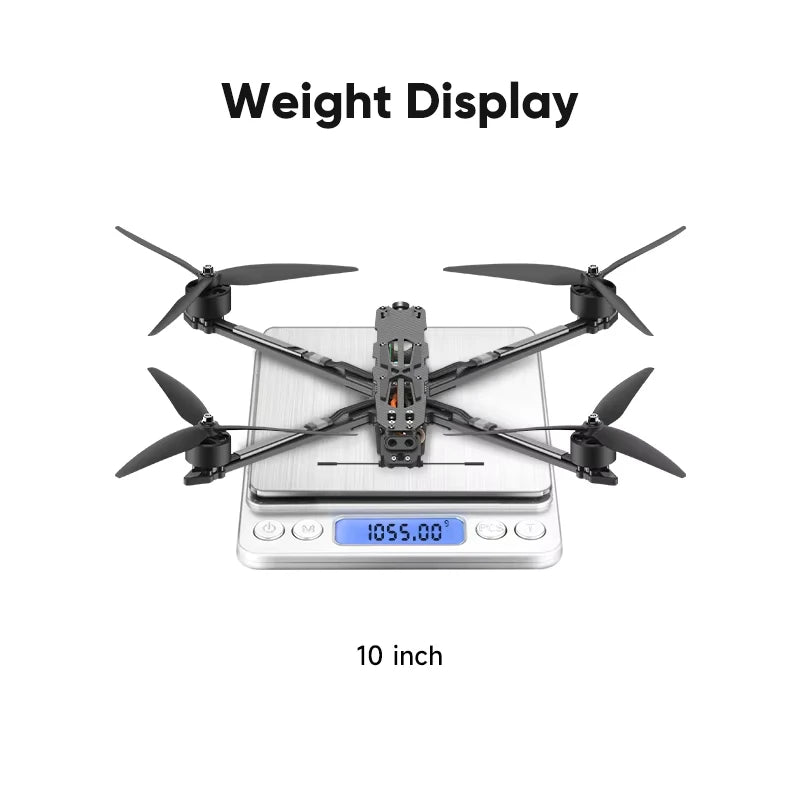

Drone Weight: 1055g

ESC: 60A 4IN1

Empty Weight (Battery Not Included): 1055g

Equipped with Aerosol Spraing System/Spread Tank Volume: No

FPV Operration: Yes

Flight Controller: F405

Flight Time: 28min

Frame Material: T300 Carbon fiber

Full Load Hovering Time (at sea level, <2nd wind level): 8min

GPS: No

High-concerned chemical: None

Input Voltage: 3S-6S LiPo battery

Integrated propeller guard: Not Include

MTOW/Max Takeoff Weight: 6KG

Max Horizontal Flight Speed (at sea level, <2nd wind level): 165km/h

Max Payload: 3.5KG

Max Remote Control Distance: 10KM+

Max Takeoff Weight: 5-6KG

Max Tilt Angle: 360°

Max Wind Speed Resistance: < 10 KM/H

Model Name: HS-X10M

Motor: 3115-900kv

Motor Type: Brushless Motor

Obstacle avoidance types: No support

Operating Temperature: -10℃ to 40℃

Operating Voltage: 6S liPo/6S LiHv

Origin:

Rated Load Hovering Time (0 attitude, <2nd wind level): 10min

Rated Payload: 3KG

Recommended Battery: 6S 10000mAh 75C LiHV

Remote Distance: >10km

Sensor Size: 1 / 3.0 Inches

Type: 10inch FPV Drone,FPV Quadcopter Drone

Video Format[Name/Type]: MP4,MOV

Video Maximum Resolution[Pixel X Pixel]: 720P (1280x720)

Wheelbase: 438mm

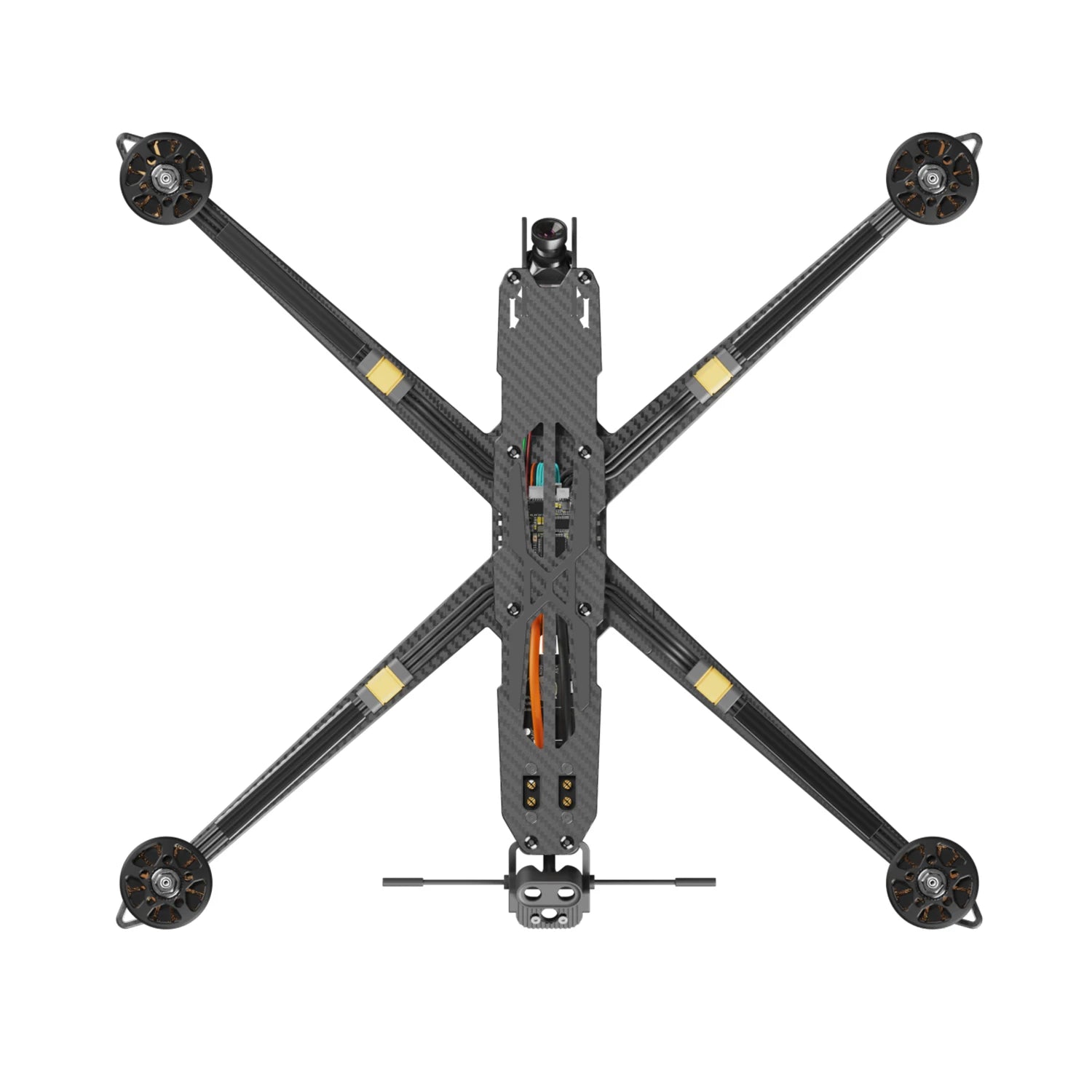

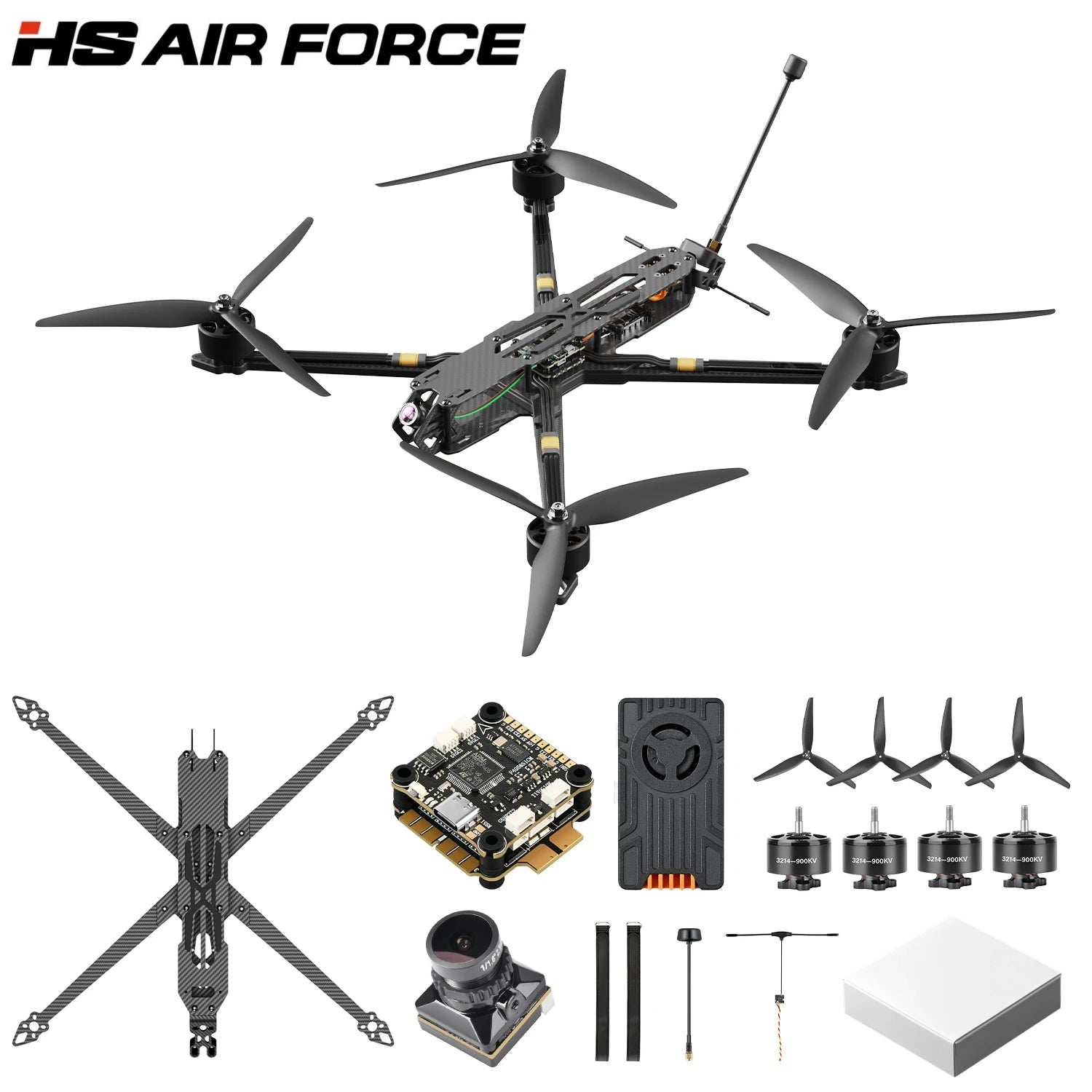

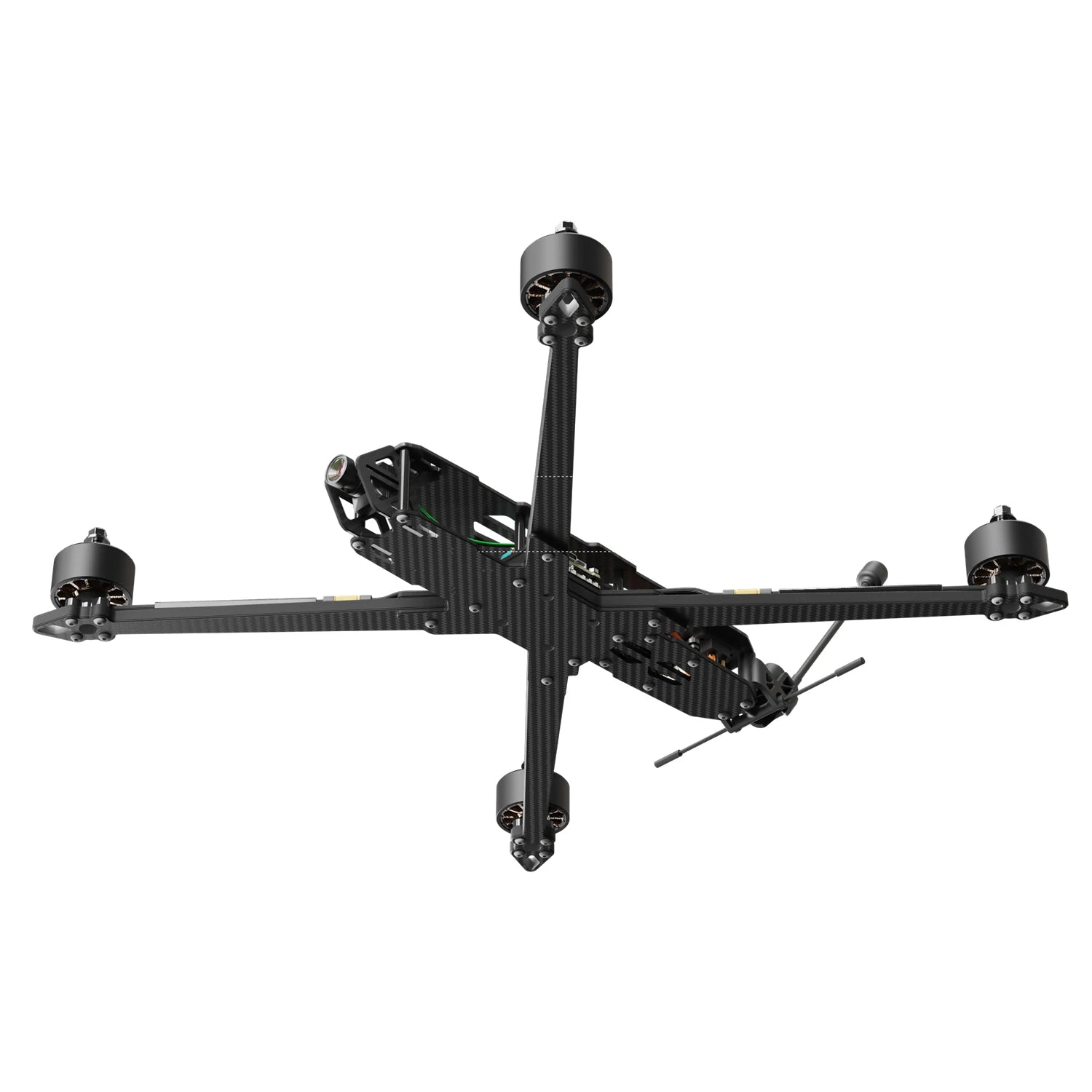

HS Airforce HS-X10M 10 Inch FPV Drone Racing 165KM/h 30min Distance Rated Load 3.5KG Quadcopter Camera Drones Max Takeoff 6KG

HS-X10M Heavy-Lift FPV Drone | 6KG MTOW | 165km/h Max Speed | GPS Optional

The HS-X10M is a high-performance FPV drone designed for professional payload delivery, mapping, and freestyle racing applications. Featuring a T300 carbon fiber frame and a 6kg maximum takeoff weight, it supports up to 3.5kg payload, making it ideal for carrying sensors, cameras, or custom equipment.

Equipped with powerful 1930W motors and 250mm 3-blade propellers, it delivers lightning-fast speeds up to 165km/h and superior stability. The drone supports ELRS 915MHz receiver with a control range over 10km, and the 5.8GHz VTX offers multiple power options up to 3W for reliable video transmission.

With a hover time over 30 minutes (no load) and 10 minutes under full payload, the HS-X10M is optimized for extended missions. It integrates Betaflight firmware, dual-camera switch, Type-C port, DJI FPV compatibility, and full telemetry-ready ESCs with AM32 firmware.

Key Features:

• Max Payload: 3.5kg | MTOW: 6kg

• Max Speed: 165km/h | Ascend: 15m/s | Descend: 20m/s

• Optional GPS with ±0.5m vertical hovering accuracy

• Modular design with customizable receiver/VTX frequencies

• High-temp motor construction (900kv / 72.27A max current)

• Supports 3S–8S LiPo battery input

Whether for long-range FPV flights or industrial applications, the HS-X10M offers unmatched performance and reliability in a compact, carbon fiber build.

Note: GPS module and camera are optional. Battery not included.

2. Item Specifics / Detail Section

• Model: HS-X10M

• Drone Type: FPV Racing / Industrial

• Empty Weight: 1055g (without battery)

• Rated Payload: 3kg

• Max Payload: 3.5kg

• Max Takeoff Weight (MTOW): 6kg

• Flight Time: 10min (with payload), >30min (no-load)

• Flight Speed: Up to 165km/h

• Range: 10km+

• Tilt Angle: 360°

• Max Altitude: 5000m

• Wind Resistance: Level 6

• Operating Voltage: 6S LiPo / LiHv

• Material: T300 Carbon Fiber Frame

• Wheelbase: 438mm

• Camera Resolution: 1500TVL

• Control Frequency: ELRS 915MHz (customizable)

• VTX Output: 25mW to 3W

• GPS Module: Optional

• Firmware: Betaflight + AM32

• ESC Current: 60A Continuous / 65A Peak

• Temperature Range: -10°C to 40°C
