FPV Specifications

Flight Controller

F405

ESC

60A Split ESC *6

Motor

3115-900kv

Propeller

1050-3

Input Voltage

3S-6S LiPo battery

Recommended Battery

6S 10000mAh 75C LiHV

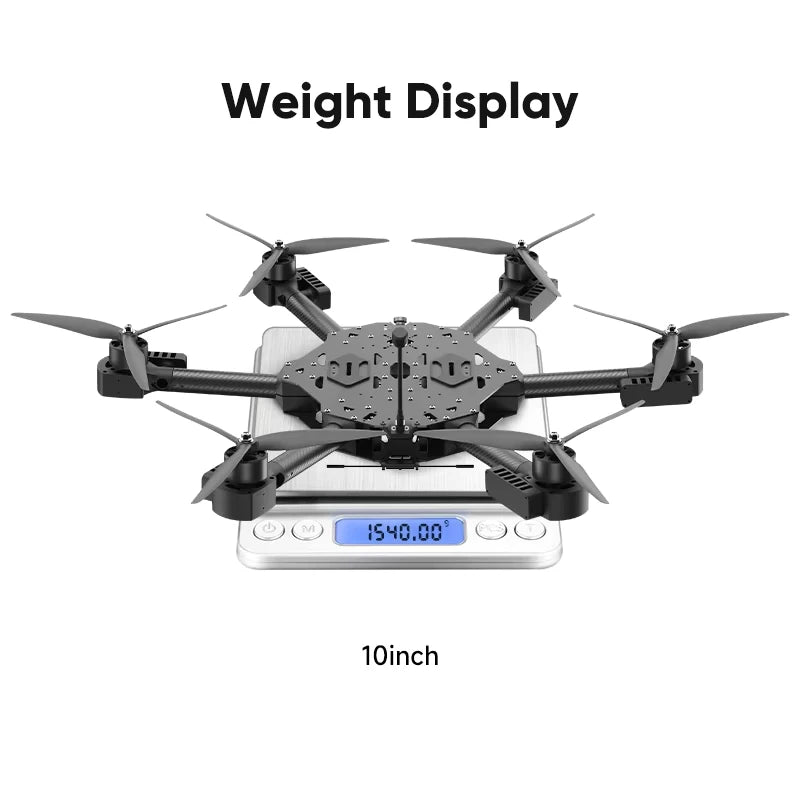

Empty Weight (Battery Not Included)

1540g

Rated Payload

4kg

Max Payload

5kg

MTOW/Max Takeoff Weight

8.5kg

Max Remote Control Distance

10km+

Operating Voltage

6S liPo/6S LiHv

Rated Load Hovering Time
(0 attitude, <2nd wind level)

10min

Full Load Hovering Time
(at sea level, <2nd wind level)

8min

Max Tilt Angle

360°

Max Horizontal Flight Speed
(at sea level, <2nd wind level)

145km/h

Max Takeoff Altitude

5000m

Max Ascend Speed

15m/s

Max Descend Speed

20m/s

Max Wind Resistance Level

6

Default Max Angular Speed

Pitch Axis:670 °/s;
Roll Axis: 670°/s;
Yaw Axis: 670°/s

Receiver Frequency Band

ELRS 915Mhz (other bands can be customized)

VTX Transmitte Power(default 3W)

25mW/1.6W/2W/2.5W/3W

VTX Transmitte Frequency Band

5.8Ghz (other bands can be customized)

VTX Transmitte Antenna SWR

＜1.5

VTX Transmitte Antenna Gain

3dB

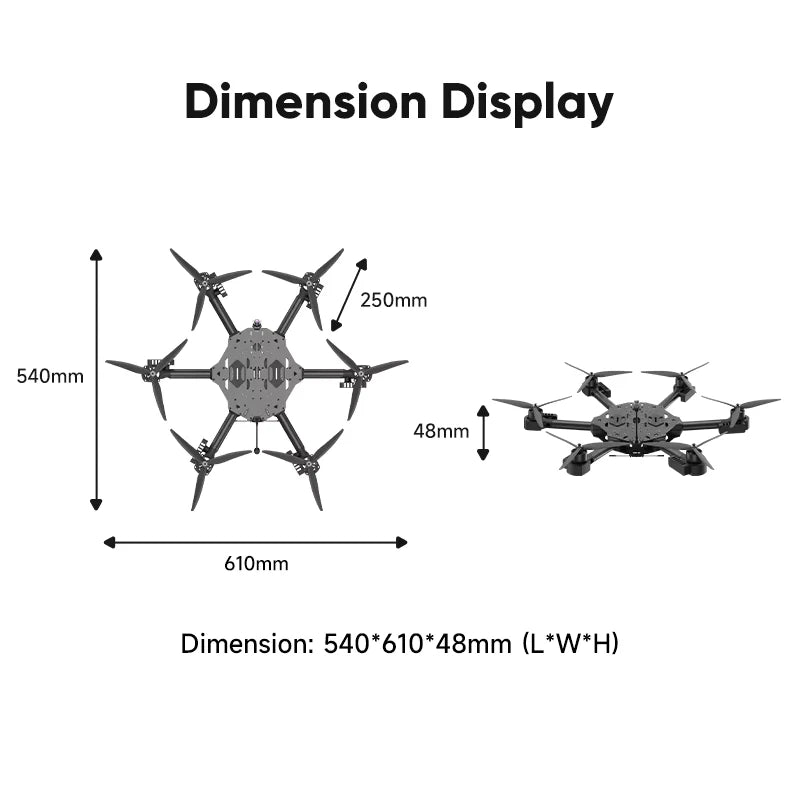

Dimensions (Length * Width * Height)

540*610*48mm

Wheelbase

552mm

Frame Material

T300  Carbon fiber

Operating Temperature

-10℃ to 40℃

GPS Positioning System
(Default does not come with this function, can be optional)

Hovering Accuracy (GPS mode)

Vertical: ±0.5m
(when barometer is working normally)
Horizontal: horizontal positioning ± 1M (GPS)

Return-to-Home Accuracy (GPS mode)

±1m

Motor Specifications

Max Power

1930W

Max Current

72.27A

KV Value

900kv

Number of Magnetic Poles

14

Stator Size

φ32*14mm

Mounting Dimensions

M3 19*19mm

Screw Sizes for Motor

M3-10mm

Weight per Motor

115g

Total Number of Motors

6

Copper Wire

220°C High-temperature resistant enameled wire
(multi-strand winding wire)

Silicon Steel Sheets

0.2mm Silicon steel sheets

Magnetic Steel

48SH Rotor NdFeB tiles

Shaft

Lightweight high-strength core steel shaft

Housing Material

SUM24L or 20# steel

Force Effect Chart

Attached page

Propeller Specifications

Diameter

250mm

Pitch

5in

Number of Blades per Propeller

3

Mounting Hole Diameter

5mm

Material

GFR-nylon

Color

Black

Weight per Blade

24.5g

Number of Propellers per Drone

CCW*3，CW*3

FC Specifications

Processor/Flight Controller

STM32F405

Gyroscope

ICM42688-P

Barometer

Bosch BMP280

OSD

AT7456E

Black Box

16MB

Dual-Camera Switch

YES

DJI Dedicated Interface

YES

USB Port

Type-C

Voltage Input

3S-8S LiPo battery

BEC

5V/3A ; 9V/2A

Number of Uart

5

ESC Output

8 set

I2C Protocol

YES

Mounting Hole Pitch

30.5*30.5  φ4mm

Firmware

Betaflight

Split ESC Specifications

ESC Main Controller

AT32F421K8U7

MOSFET

High-performance MOSFET

Voltage Input

3S-6S LiPo battery

Continuous Current

60A

Peak Current

65A(10S)

ESC Telemetry

YES

ESC Protocol

DShot 150/300/600

Dimension

41*21*11mm

Firmware

AM32_AT32DEV_F421_1.99

Machine ESC Quantity

6

PDB Specifications

Model

PDB6-100AM

On-board Ammeter

YES

BEC

YES(5V-3A/12V-3A)

Voltage Input

3-12S Lipo

Continuous Current

100A (Single circuit)

Peak Current

105A (Single circuit)

Ratio of Ammeter

185

Mounting Hole Pitch

30.5*30.5mm

Dimension

55*52mm

Receiver Specifications
(other bands can be customized)

Operating Frequency

915Mhz

Receiver Protocols

ELRS

Max Receiver Refresh Rate

200HZ

Minimum Receiver Refresh Rate

25HZ

Return Power

50mW

Voltage Input

DC 4.5-5V

Receiver Dimensions

12*12*2mm

Weight

0.6g (receiver only）

Receiver Antenna Type

“T”Shape

Camera Specifications

Sensor

1/2.7'' Inch Blacklight Sensor

Horizontal Resolution

1500TVL

Video Format

PAL/NTSC (optional)

Image Ratio

16:9

Wide Dynamic Range

Super WDR

Low Illumination

0.00001Lux

Lens

2.1mm

Electronic Shutter

PAL: 1/50-100.000SEC. NTSC:1/60-100,000

Video Output

CVBS

FOV

135°

Day/Night

Color /AR Black Light/Auto

Size

19mm*19mm

Wide Voltage Input

DC 5V-20V

Operating Temperature

-20℃~70℃

Weight

6g

VTX Specifications
(other bands can be customized)

Transmit Power

25mW/1.6W/2W/2.5W/3W

Default Output

5.8Ghz /3W

Operating Frequency

4990-5945Mhz

Number of Channels

72CH

Video Format

PAL/NTSC

Antenna Interface

MMCX

Built-in Microphone

No

Supported Protocols

IRC Tramp

OSD Parameter Tuning

Yes

Voltage Input

DC7-28V (2-6S LiPo battery)

Overall Dimension

53*31*14mm

Mounting Hole Distance

20mm*20mm

Weight

19g

Max Effective Signal Distance
(No Interference, No Obstruction)

10km+

Adapter Cable

MMCX (female pin)-SMA (internal hole) cable *1

VTX Antenna

5.8Ghz 14cm SMA Female Pin Right Rotary Antenna

ANT Specifications

Applicable Frequency Band

5.8Ghz

Working Frequency

4990-5945Mhz

Left/Right Rotary Polarization

RHCP

Antenna Gain

3dB

80°

SWR

<1.5

Antenna Interface

SMA

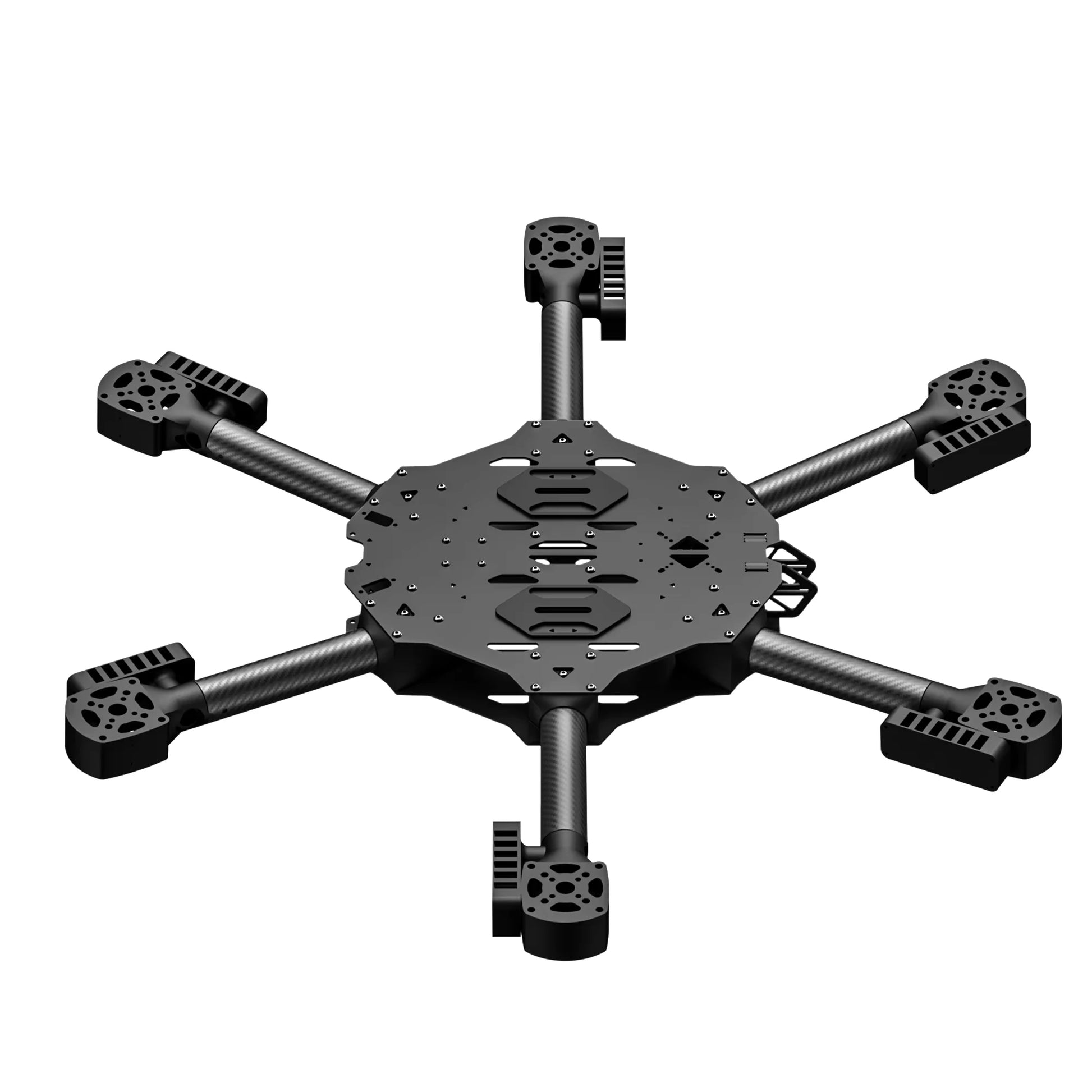

Frame Specifications

Dimensions (L*W*H)

540*610*48mm

Wheelbase

552mm

Frame Weight

1019g

Frame Material

T300 Carbon fiber

Bolt Material

12.9 Grade alloy steel

Injection Molding Part Material

Nylon with mixed fiber

Battery Type Recommended

Rated Capacity

8000mAh

Nominal Voltage

22.2V

Combination Method

6S1P

Discharge Rate

75C

Battery Quantity Recommended

2Pcs

Battery Type

Lipo

Weight

About 1062g ± 30g
