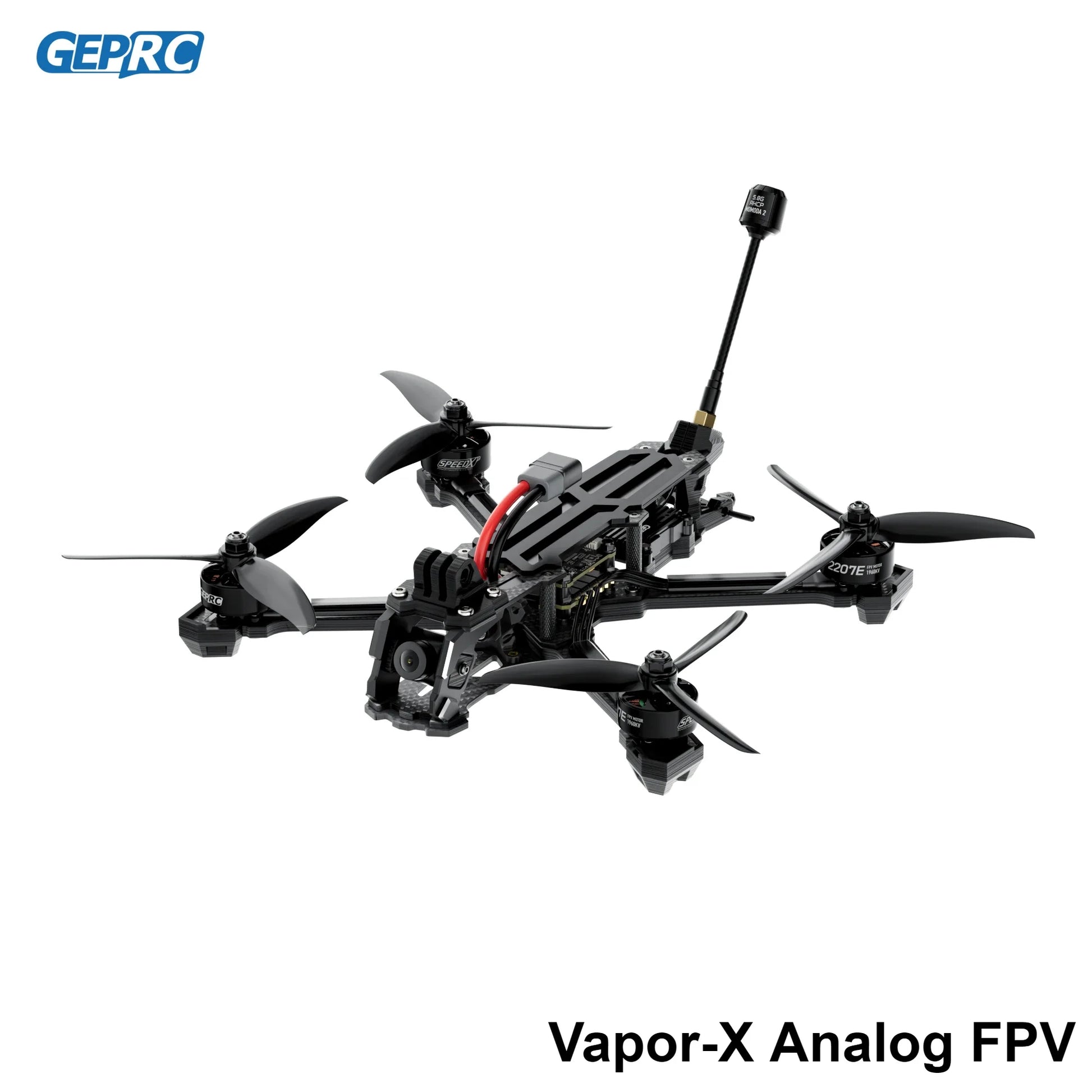

Summary

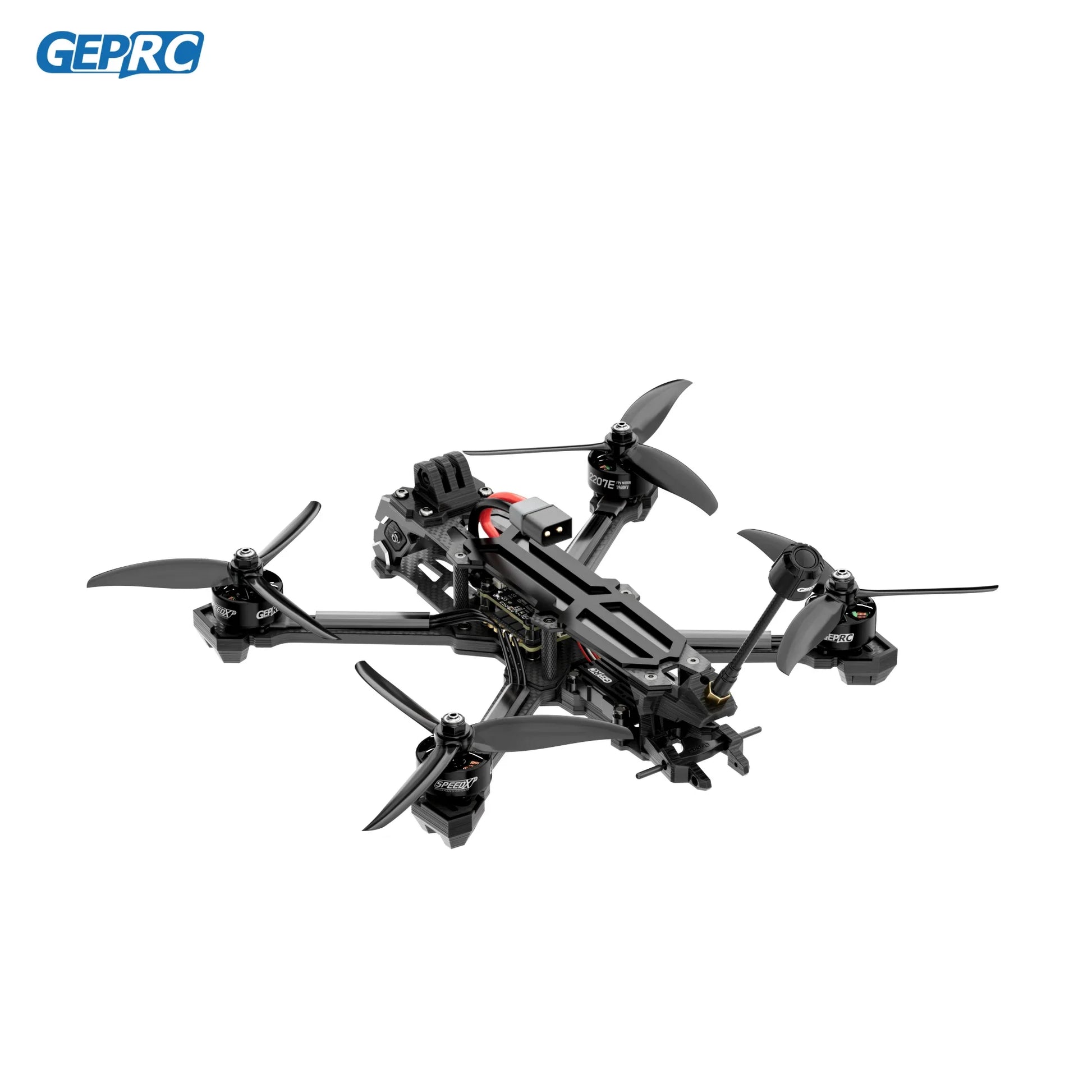

The Vapor-X is a robust and agile FPV designed for freestyle flying. The name "Vapor-X" is inspired by the pursuit of freestyle flying and the distinctive wide X-shaped design.
It features the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance. The CNC aluminum alloy camera protection side plates enhance both durability and aesthetics.

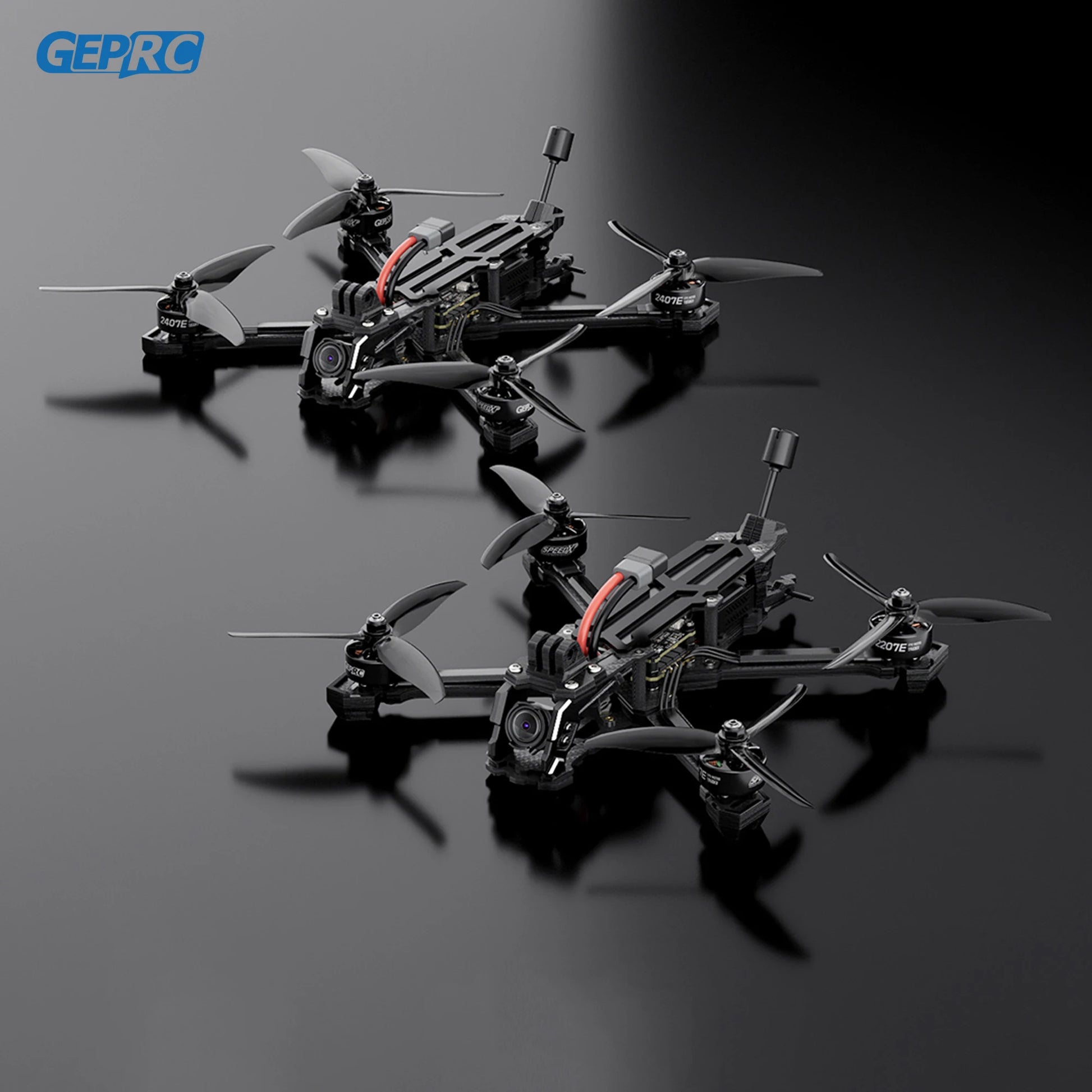

Available in 5-inch and 6-inch models, catering to various flying preferences, the Vapor-X offers an unparalleled flying experience for every pilot.

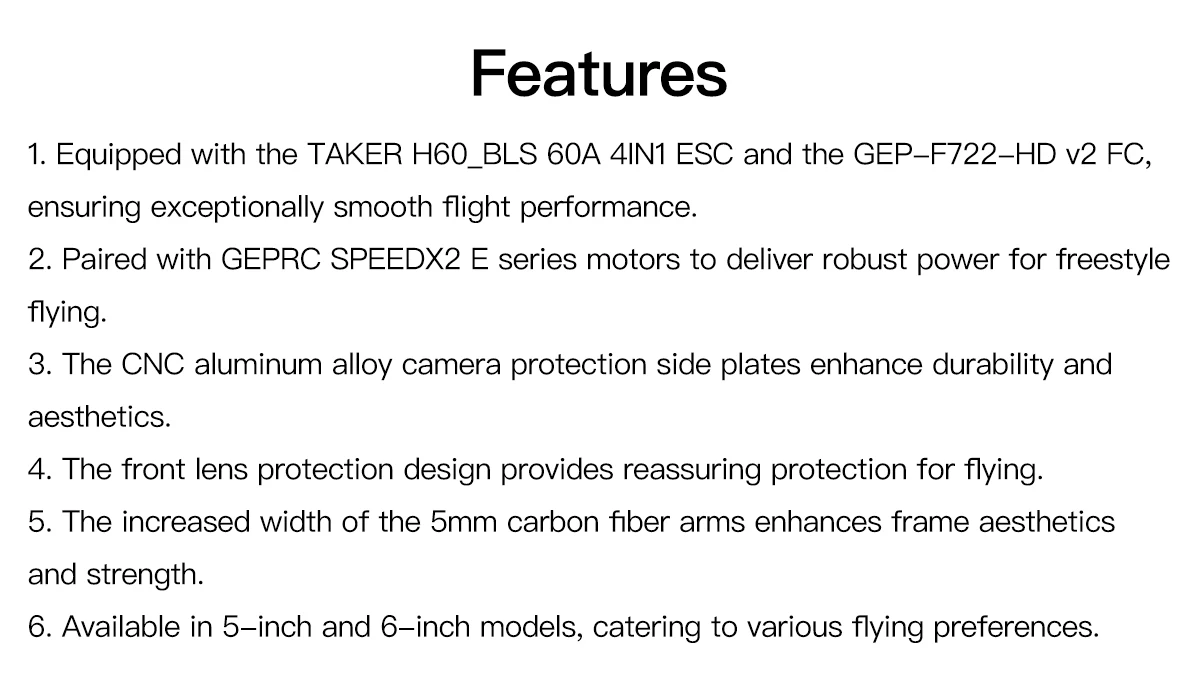

Feature

1. Equipped with the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance.

2. Paired with GEPRC SPEEDX2 series motors to deliver robust power for freestyle flying.

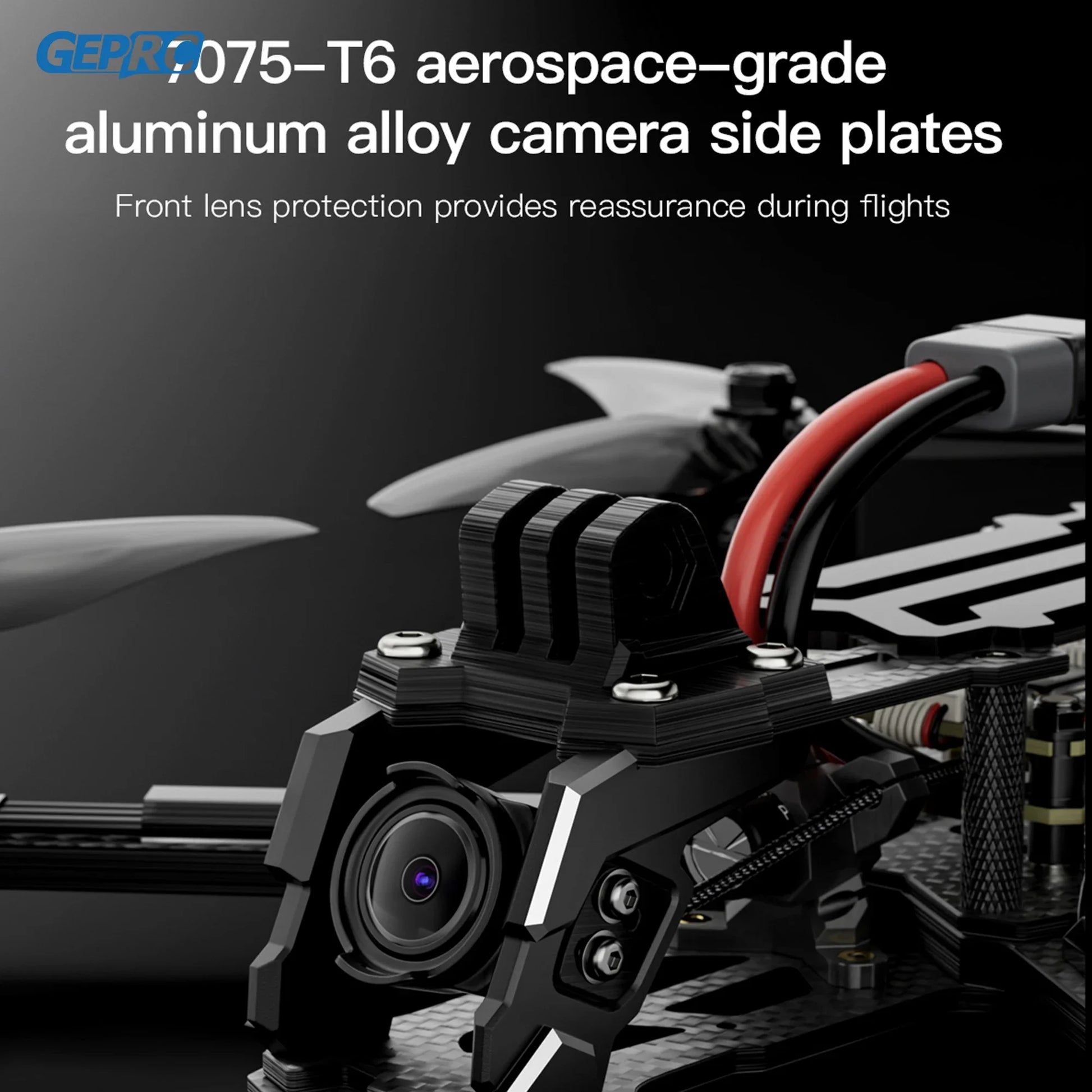

3. The CNC aluminum alloy camera protection side plates enhance durability and aesthetics.

4. The front lens protection design provides reassuring protection for flying.

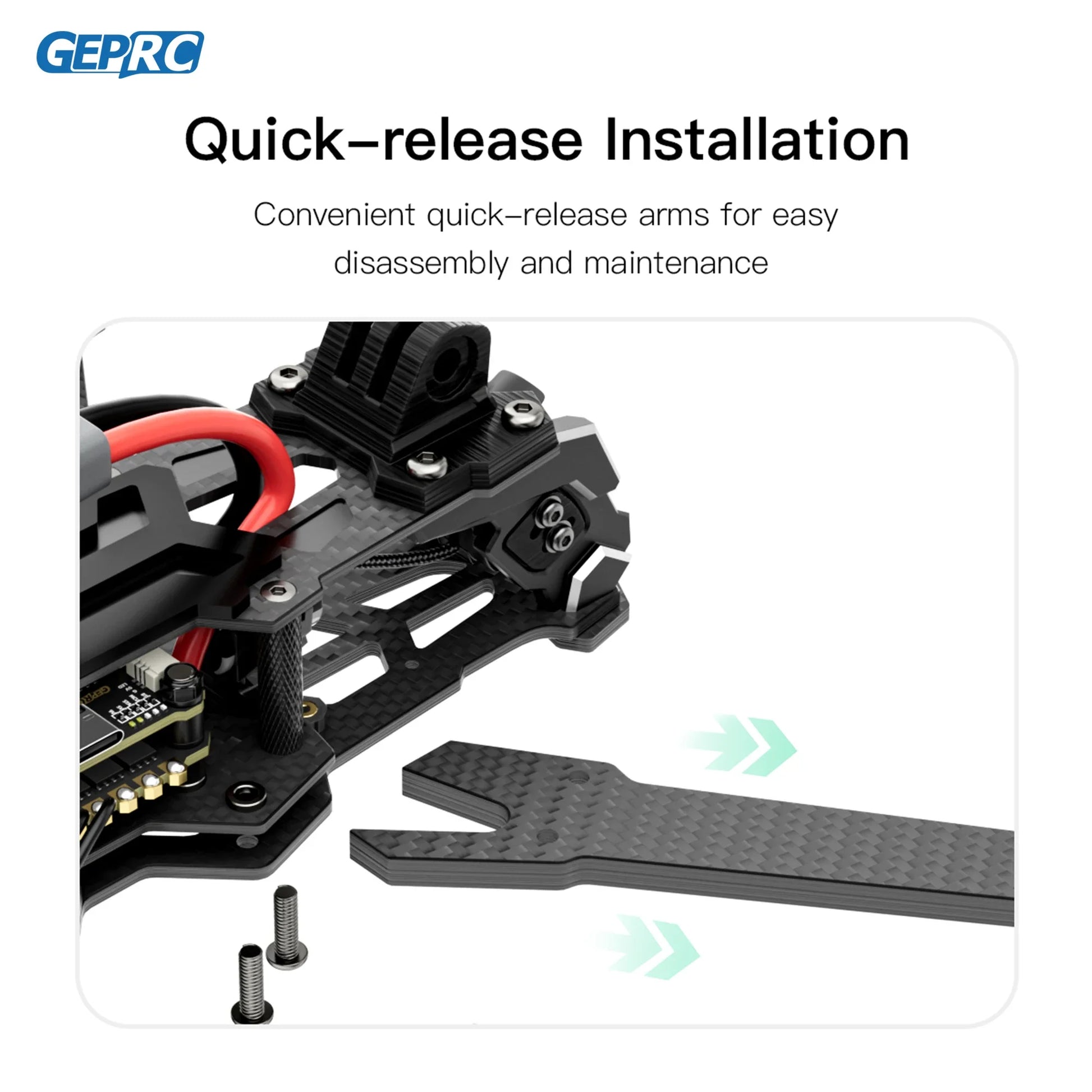

5. The increased width of the 5mm carbon fiber arms enhances frame aesthetics and strength.

6. Available in 5-inch and 6-inch models, catering to various flying preferences.

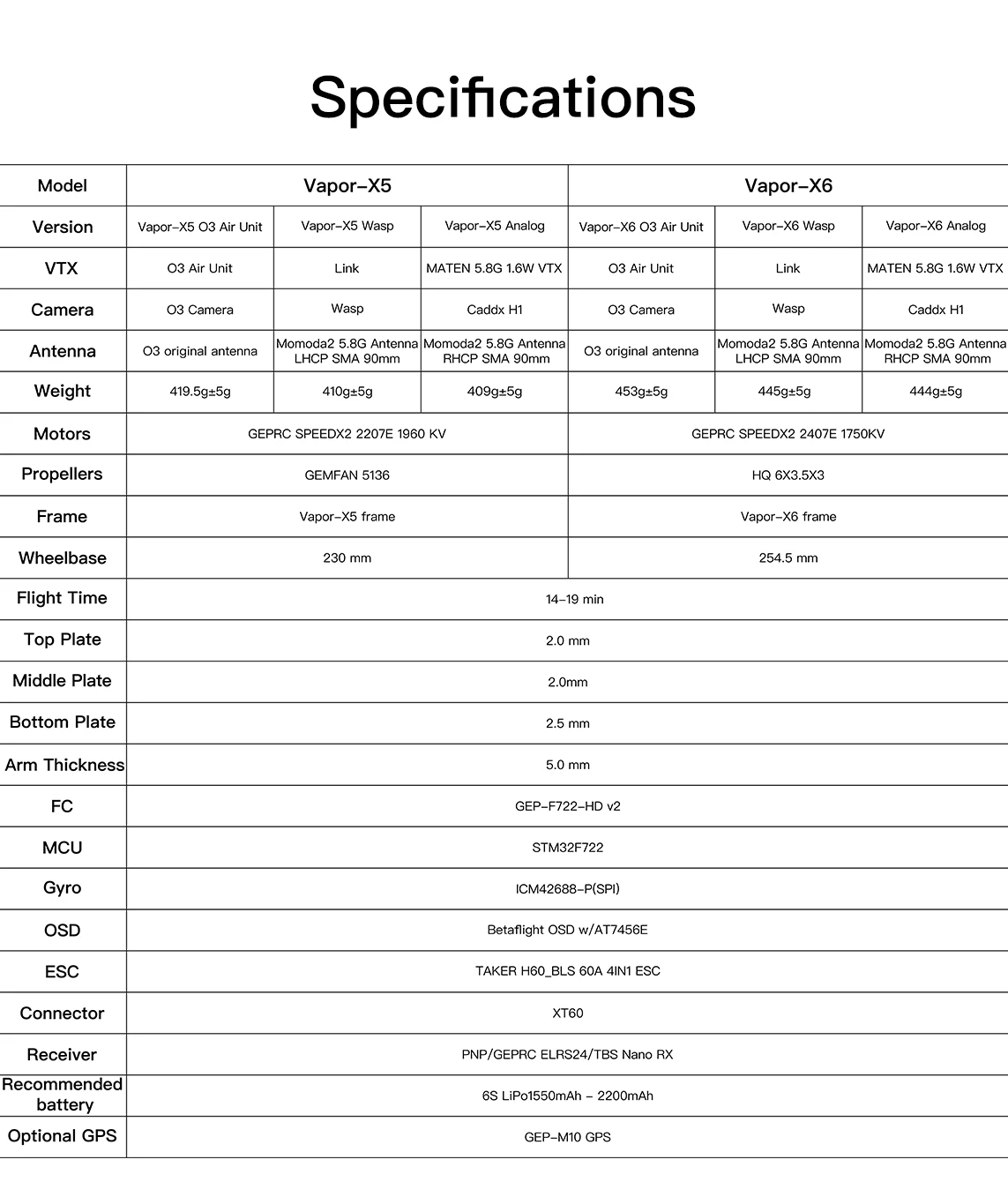

Specfication---Vapor-X5 Analog

• Model: Vapor-X5 Analog

• Frame: GEP-Vapor-X5 frame

• Wheelbase: 230 mm

• Top Plate: 2.0 mm

• Middle Plate: 2.0 mm

• Bottom Plate:2.5 mm

• Arm Thickness:5.0 mm

• FC: GEP-F722-HD v2

• MCU: STM32F722

• Gyro: ICM42688-P(SPI)

• OSD: Betaflight OSD w/AT7456E

• ESC: TAKER H60_BLS 60A 4IN1 ESC

• VTX: MATEN 5.8G 1.6W VTX

• Camera:Caddx H1

• Antenna: GEPRC Momoda2 5.8G Antenna RHCP SMA 90mm

• Connector: XT60

• 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV

• 5-inch Propeller: GEMFAN 5136

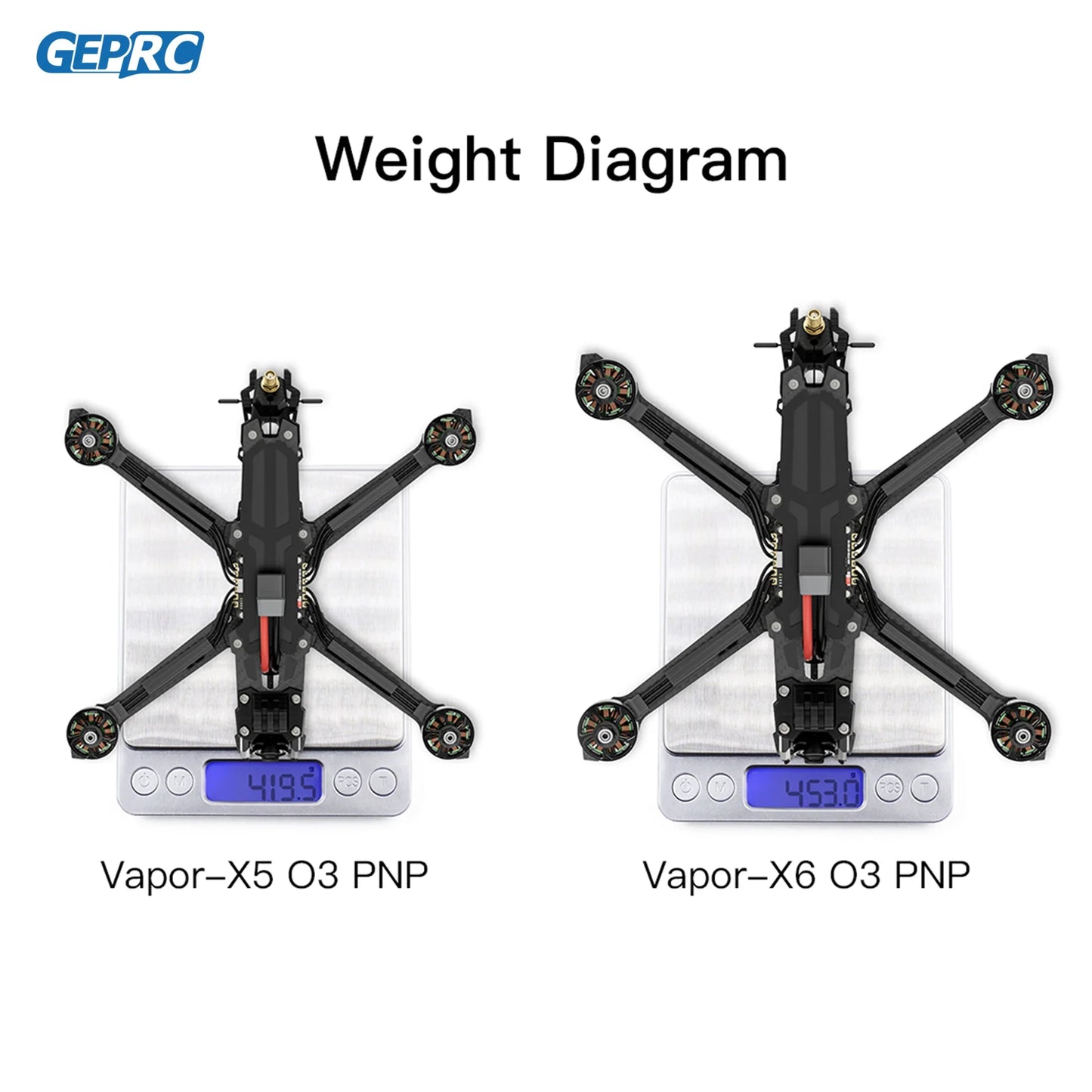

• Vapor-X5 Analog PNP Version Weight: 409g±5g

• Receiver: PNP/GEPRC ELRS24/TBS Nano RX

• Recommended Battery: LiPo 1550mAh - 2200mAh

• Flight Time: 14-19  min

Includes

1 x Vapor-X5 Analog
2 x GEMFAN 5136
2 x Battery anti-slip pads
1 x Spare screw pack
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x GoPro mount

Specfication---Vapor-X6 Analog

• Model: Vapor-X6 Analog

• Frame: GEP-Vapor-X6 frame

• Wheelbase: 254.5 mm

• Top Plate: 2.0 mm

• Middle Plate: 2.0 mm

• Bottom Plate: 2.5 mm

• Arm Thickness: 5.0 mm

• FC: GEP-F722-HD v2

• MCU: STM32F722

• Gyro: ICM42688-P(SPI)

• OSD: Betaflight OSD w/AT7456E

• ESC: TAKER H60_BLS 60A 4IN1 ESC

• VTX: MATEN 5.8G 1.6W VTX

• Camera: Caddx H1

• Antenna: GEPRC Momoda2 5.8G Antenna RHCP SMA 120mm

• Connector: XT60

• 6-inch Motor: GEPRC SPEEDX2 2407E 1750KV

• 6-inch Propeller: HQprop 6X3.5X3

• Vapor-X6 Analog PNP Version Weight:444g±5g

• Receiver: PNP/GEPRC ELRS24/TBS Nano RX

• Recommended Battery: LiPo 1550mAh - 2200mAh

• Flight Time: 14-19  min

Includes
1 x Vapor-X6 Analog
2 x HQprop 6X3.5X3
2 x Battery anti-slip pads
1 x Spare screw pack
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x GoPro mount
