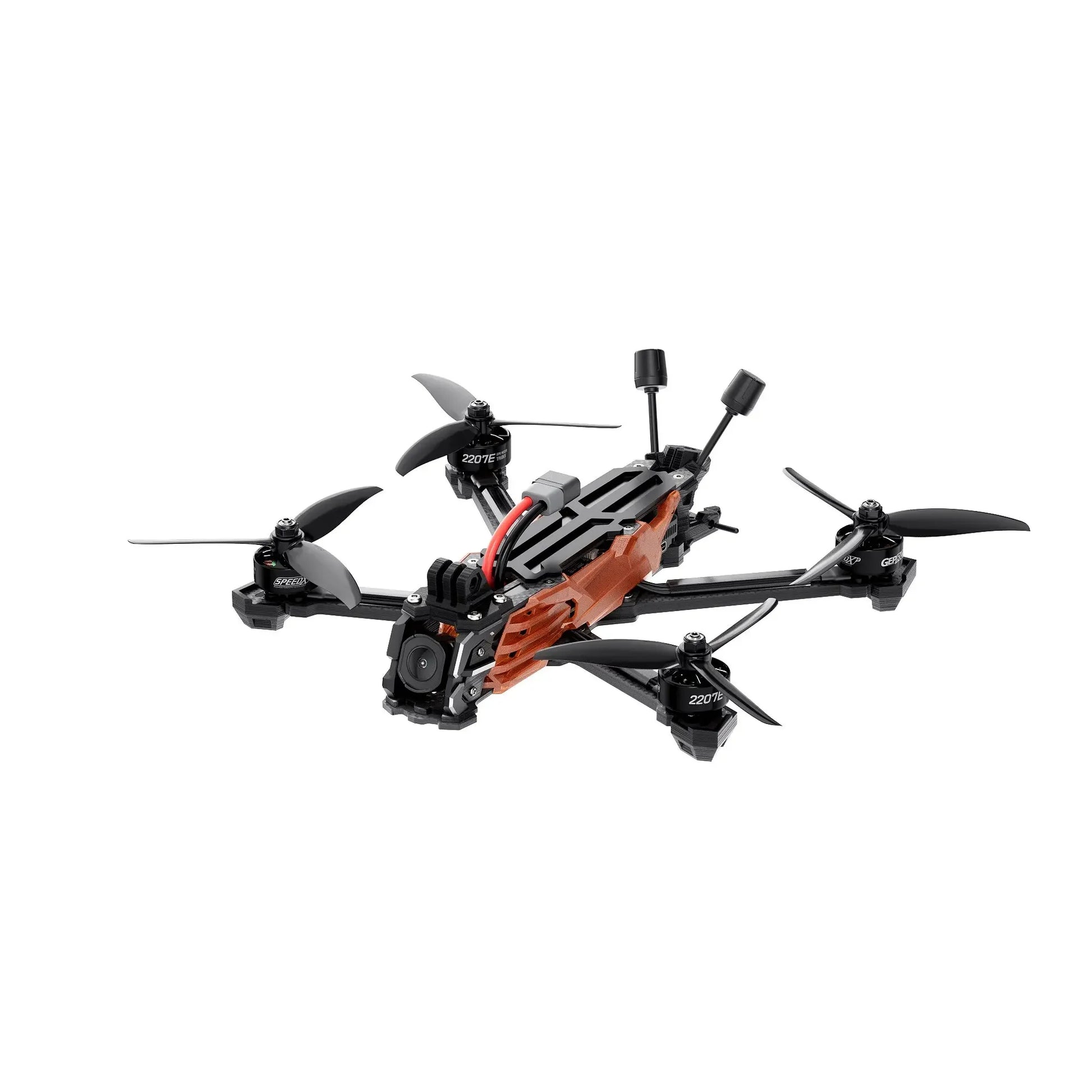

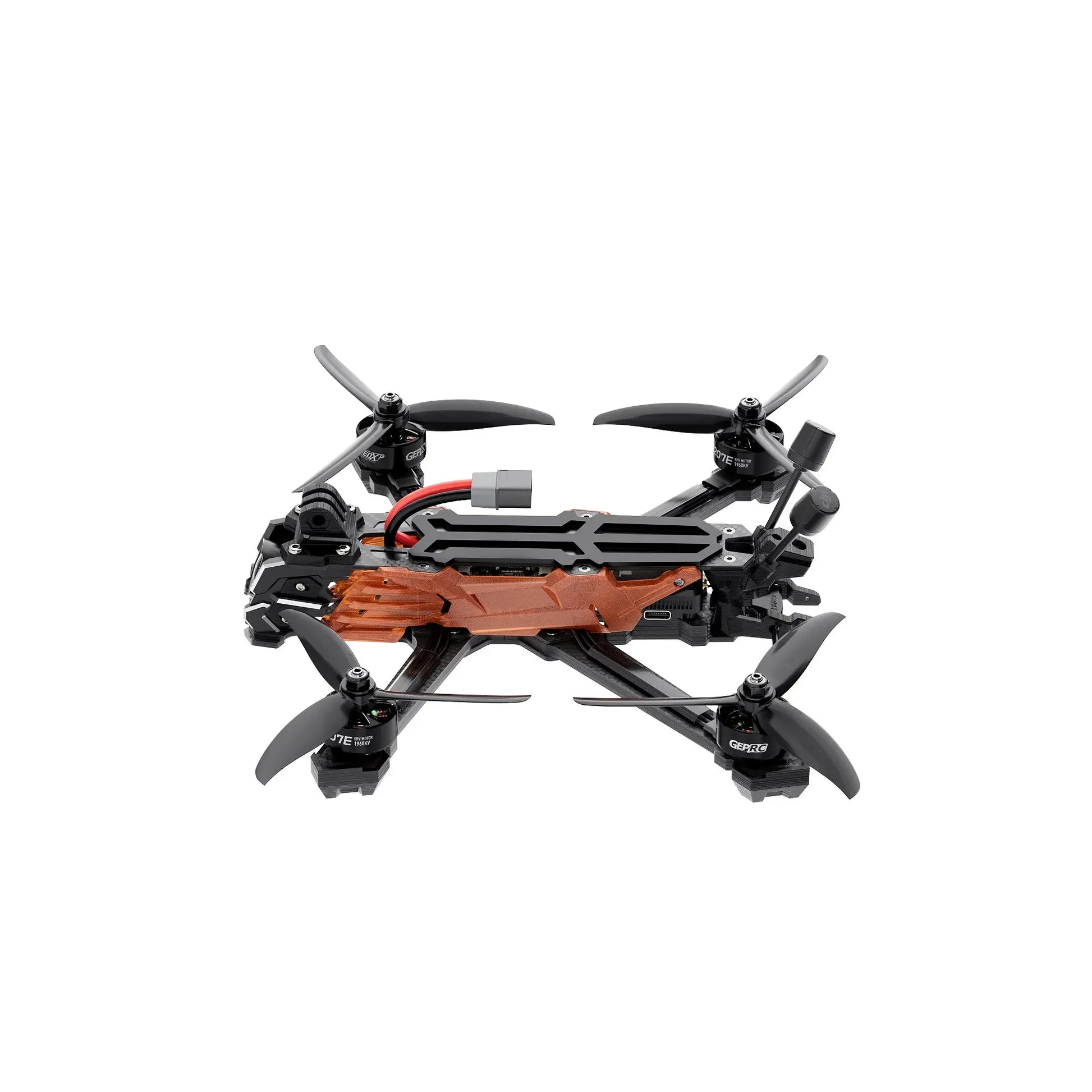

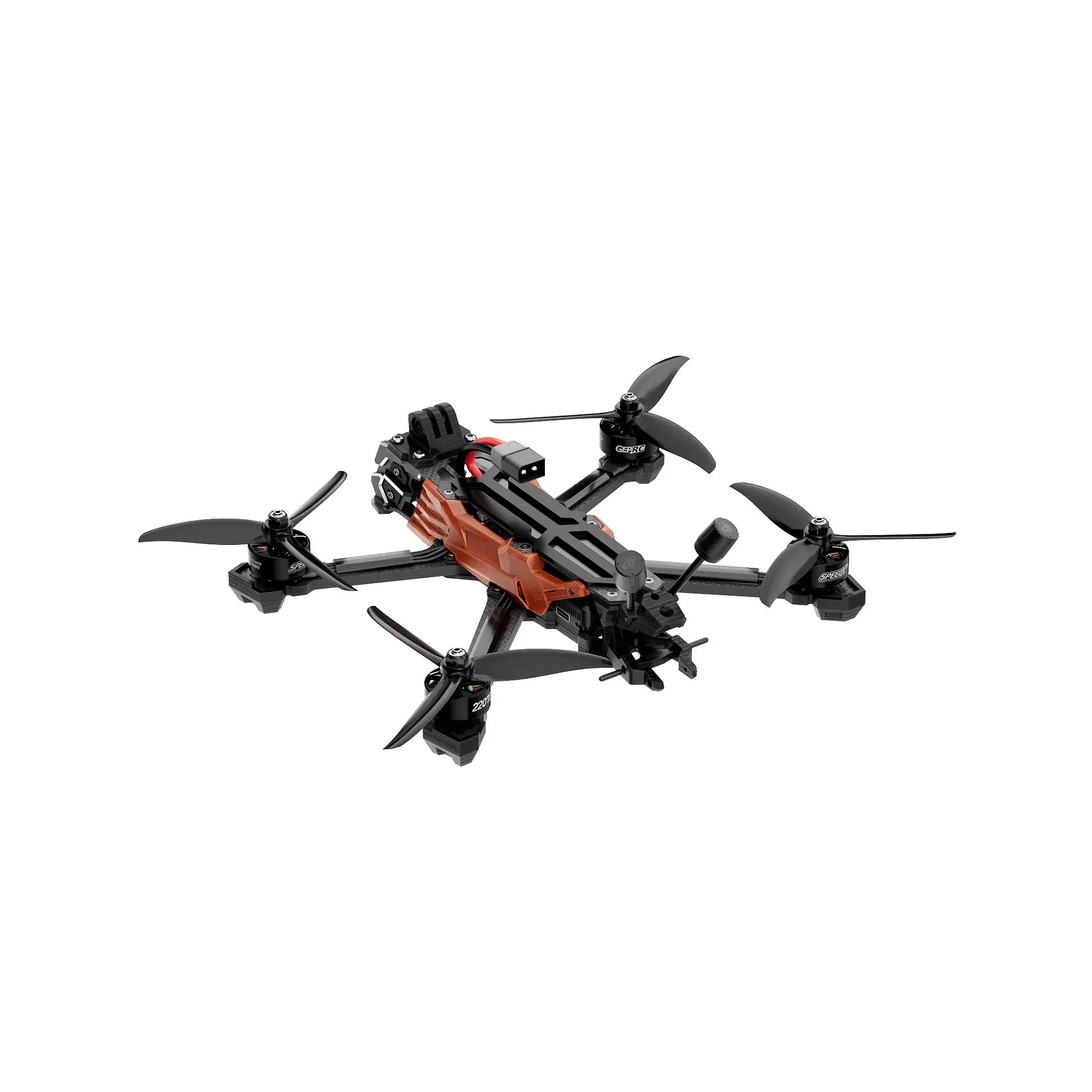

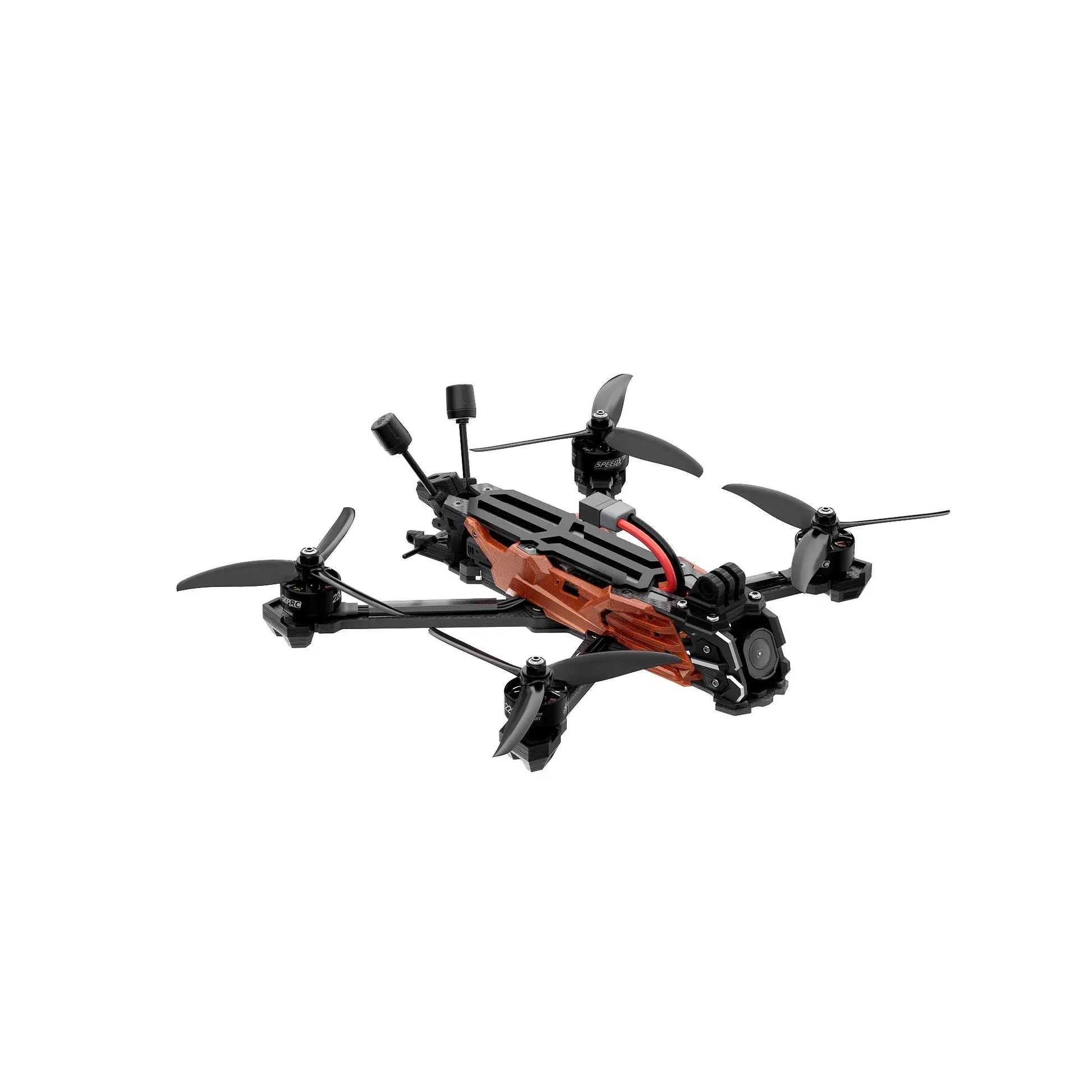

GEPRC Vapor-D5 HD O4 Pro FPV Drone 5inch DC Freestyle Quadcopter - F722 60A O4 Air Unit Pro 2207E 1960KV 6S

GEPRC Vapor-D5 HD O4 Pro FPV Drone 5inch DC Freestyle Quadcopter - F722 60A O4 Air Unit Pro 2207E 1960KV 6S

Regular price $700.50 USD
Regular price $0.00 USD Sale price $700.50 USD
Sale Sold out
Color
Quantity

SPECIFICATIONS

Aerial Photography: No

Anti-wind Ability: other

Brand Name: NoEnName_Null

Camera Mount Type: Other

Control Channels: 2 CHANNELS

Controller Battery: other

Controller Mode: MODE1,MODE2

Drone Weight: other

Flight Time: <5

High-concerned chemical: None

Indoor/Outdoor Use: Indoor-Outdoor

Is Batteries Included: No

Is Electric: No Battery

Material: Plastic

Origin:

Package Includes: Original Box

Recommend Age: 14+y

Remote Control: No

Remote Distance: other

Takeoff Weight: other

Transit Time (Days): other

Video Capture Resolution: Other


Summary

The GEPRC team has redesigned the Vapor series for optimal compatibility with the DJI O4 Air Unit Pro VTX.

New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a bold, mech-inspired look. The DJI O4 Air Unit Pro's larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.

Available in two models, Wide X and DC, to suit different flight needs.

Feature

  1. DJI O4 Air Unit Pro features a powerful CMOS sensor for improved image clarity and enhanced light sensitivity.

  2. CNC aluminum lens housing for a durable, bold design.

  3. GEPRC SPEEDX2 E-series motors for smooth, powerful performance.

  4. Front lip design provides extra lens protection for confident flying.

  5. Wider 5mm carbon fiber arms for increased durability and a sleek build.

Specifications

  • Model: Vapor-D5 O4 Pro

  • Frame: GEP-Vapor-D5 O4 Pro frame

  • Wheelbase: 230 mm

  • Top Plate: 2.0 mm

  • Middle Plate: 2.0 mm

  • Bottom Plate: 2.5 mm

  • Arm Thickness: 5.0 mm

  • FC: GEP-F722-HD v2

  • MCU: STM32F722

  • Gyro: ICM42688-P(SPI)

  • Barometer: YES

  • OSD: Betaflight OSD w/AT7456E

  • ESC: TAKER H60_BLS 60A 4IN1 ESC

  • VTX: DJI O4 Air Unit Por

  • Camera: O4  Pro Camera

  • Antenna: O4  Pro original antenna

  • Connector: XT60

  • Optional GPS: GEP-M10 GPS

  • 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV

  • 5-inch Propeller: GEMFAN 5136

  • Vapor-D5 O4 Pro PNP  Version Weight: 428 g±5g

  • Receiver: PNP/GEPRC ELRS24/TBS Nano RX

  • Recommended Battery: 6S LiPo1300mAh – 1800mAh

  • Flight Time: 14-19 min

Includes

1 x Vapor-D5 O4 Pro
2 x GEMFAN 5136
2 x Battery anti-slip pads
1 x Spare screw pack
1 x Vapor side panel
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x GoPro mount

The spare screws include

6 x M3*10mm round head screws
6 x M3*8mm round head screws
2 x M3*6mm flat head screws
1 x M5*28mm thin head screw
1 x M5 flange nut
4 x M3 rivet nuts
