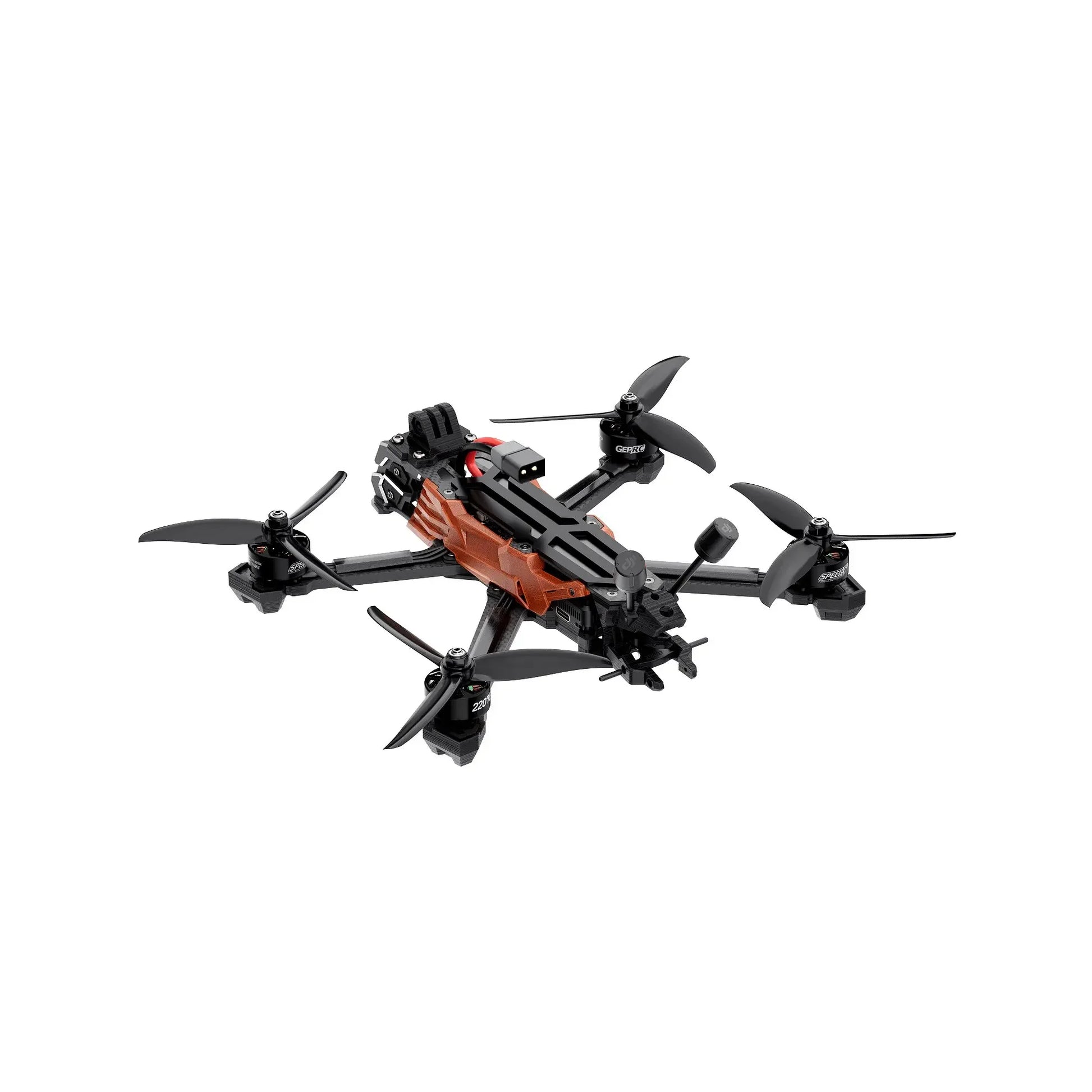

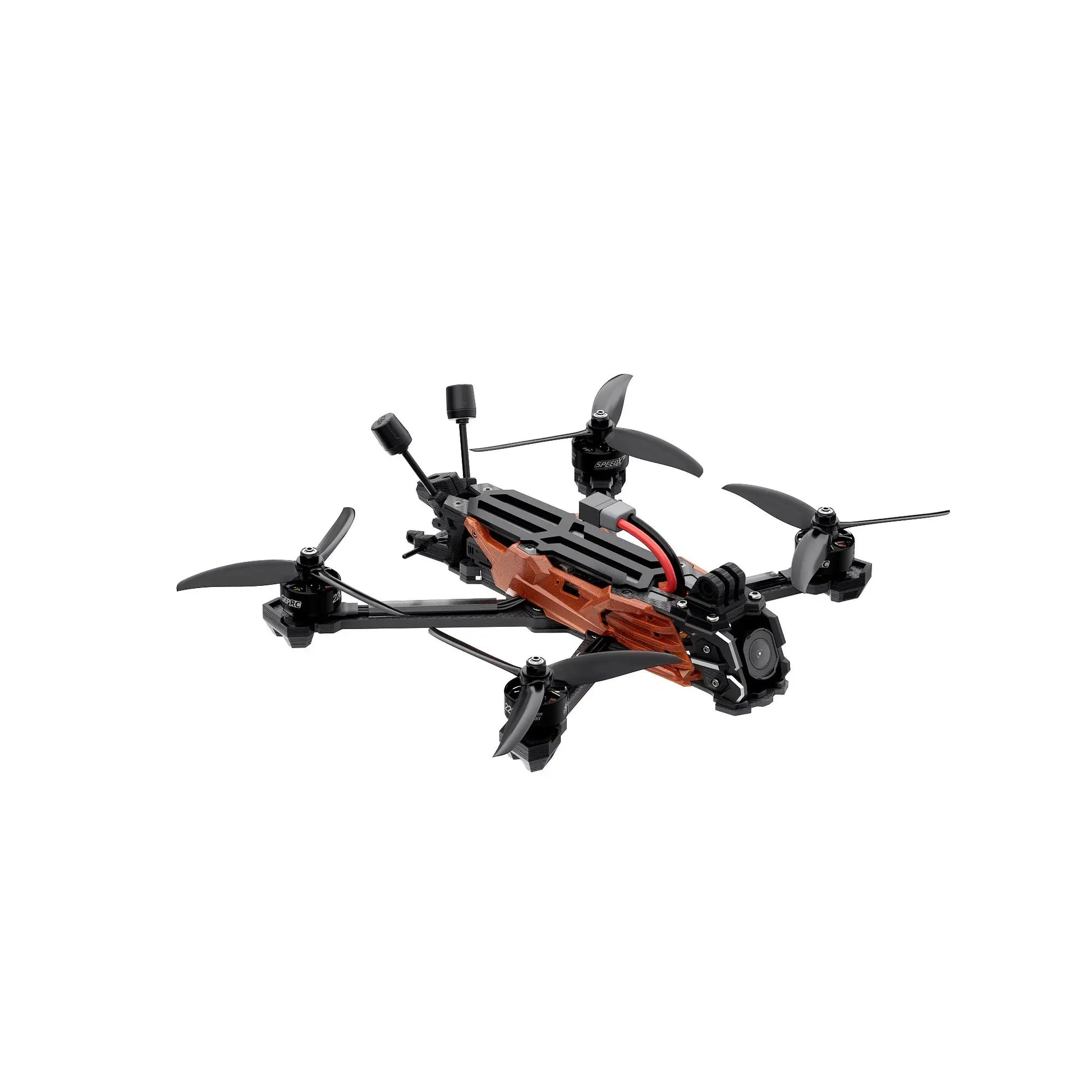

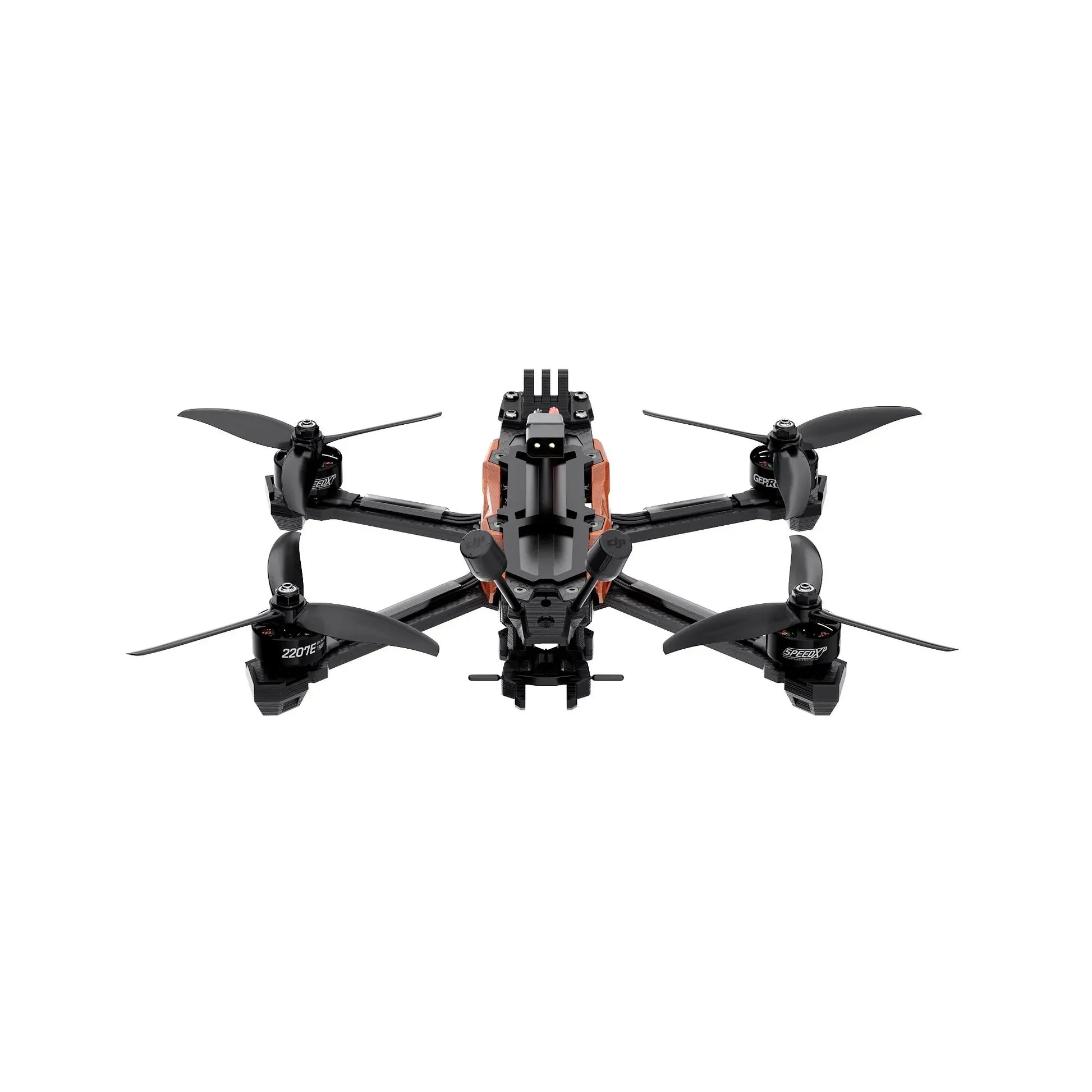

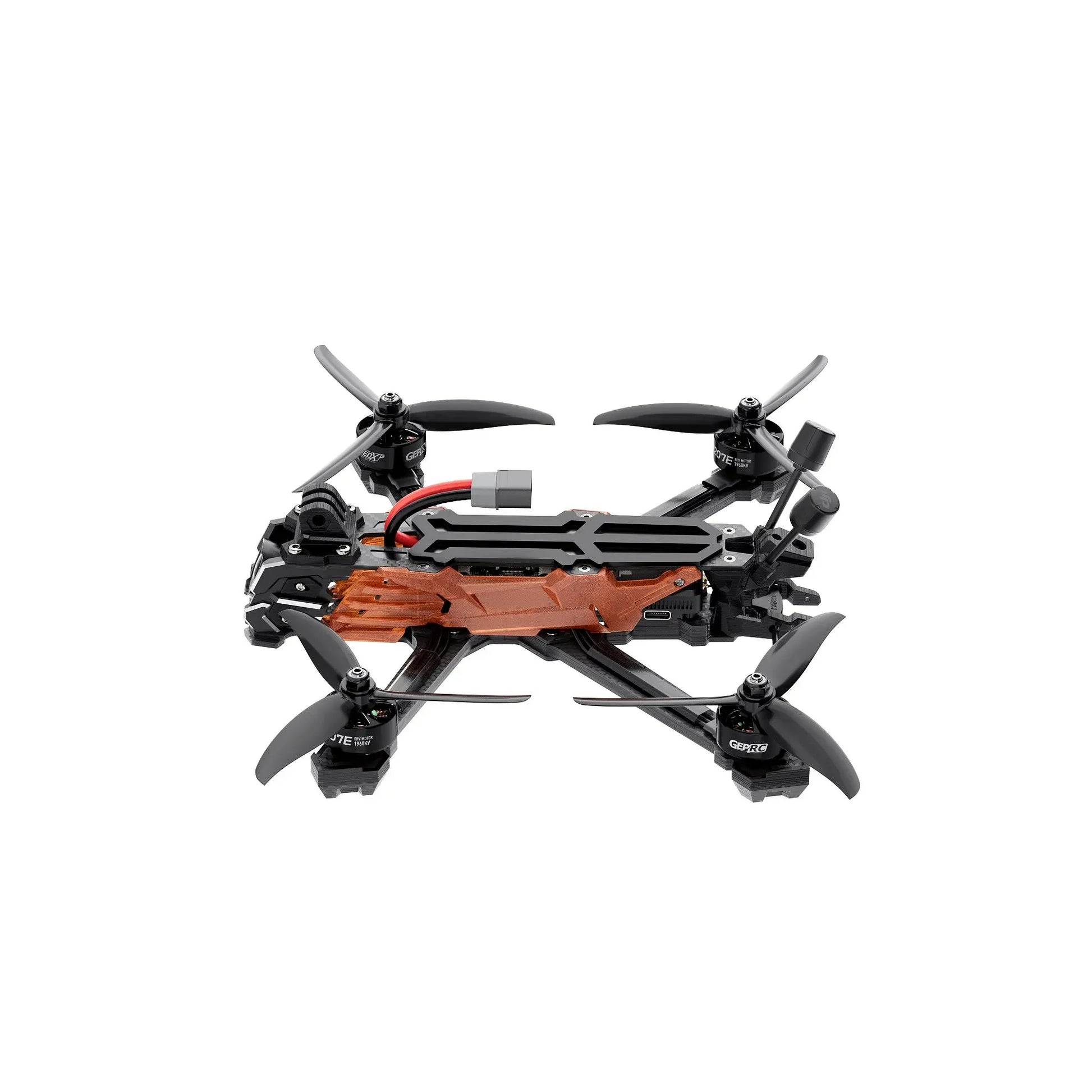

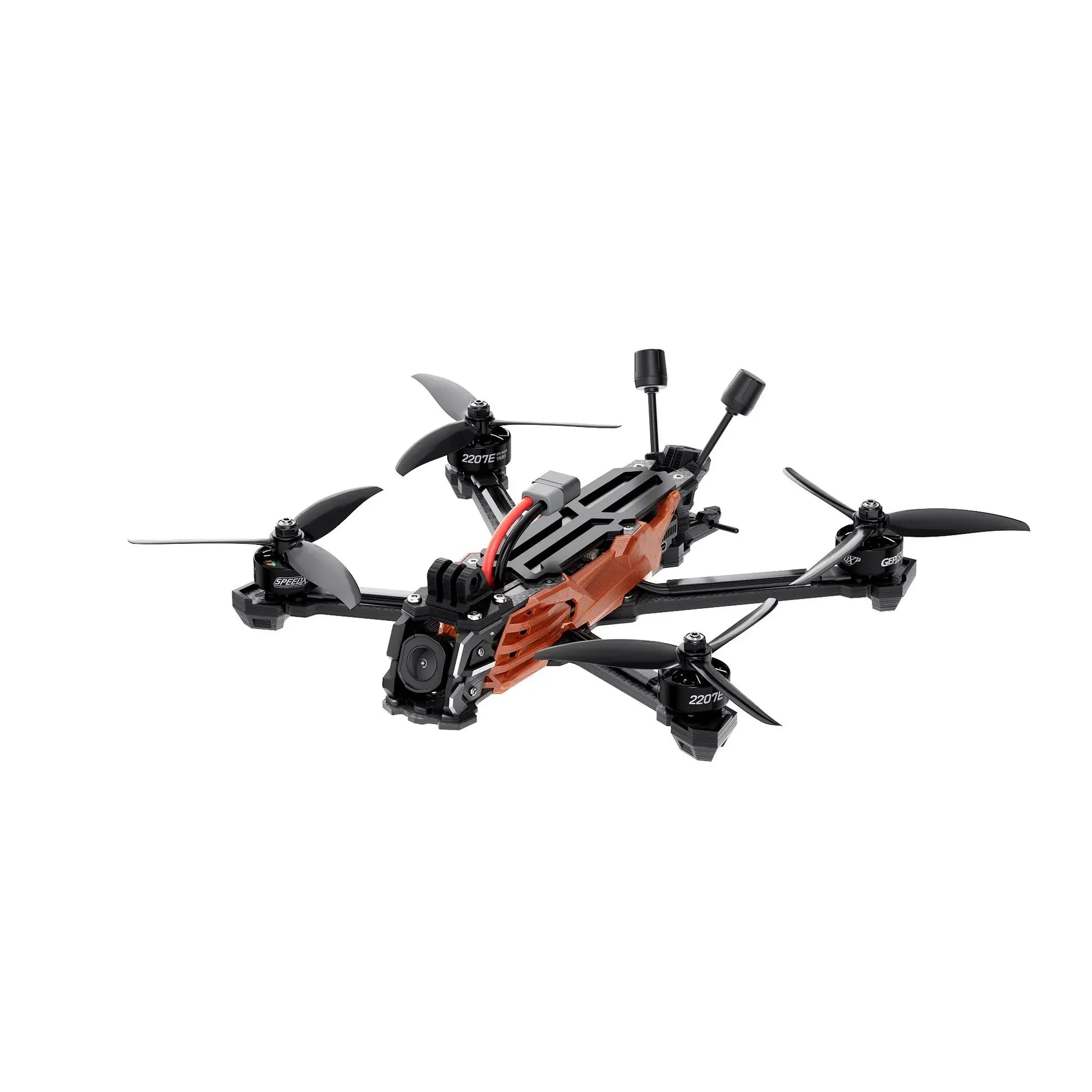

GEPRC Vapor-D5 HD O4 Pro - 5inch DC FPV Drone Freestyle Quadcopter F722 60A O4 Air Unit Pro 2207E 1960KV 6S
GEPRC Vapor-D5 HD O4 Pro - 5inch DC FPV Drone Freestyle Quadcopter F722 60A O4 Air Unit Pro 2207E 1960KV 6S
Couldn't load pickup availability
SPECIFICATIONS
Aerial Photography: No
Anti-wind Ability: other
Brand Name: AIRFORTH
Camera Mount Type: Other
Control Channels: 2 CHANNELS
Controller Battery: other
Controller Mode: MODE1,MODE2
Drone Weight: other
Flight Time: <5
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Plastic
Origin:
Package Includes: Original Box
Recommend Age: 14+y
Remote Control: No
Remote Distance: other
Takeoff Weight: other
Transit Time (Days): other
Video Capture Resolution: Other

Summary

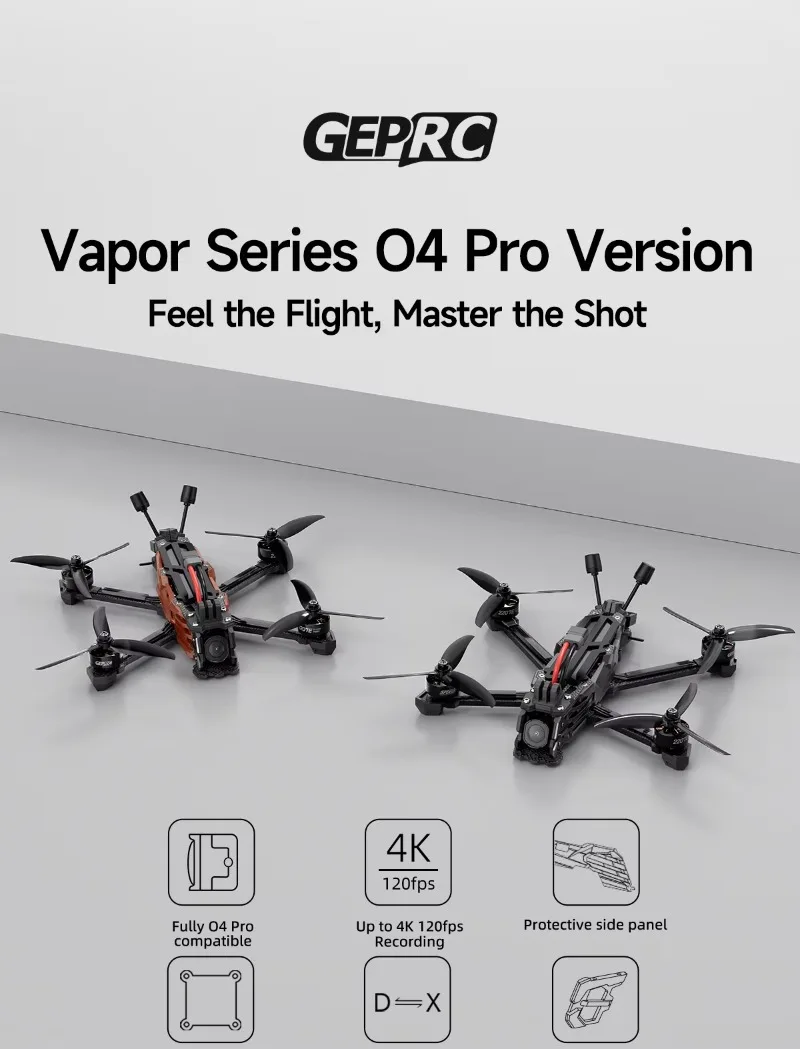

The GEPRC team has redesigned the Vapor series for optimal compatibility with the DJI O4 Air Unit Pro VTX.
New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a bold, mech-inspired look. The DJI O4 Air Unit Pro's larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.

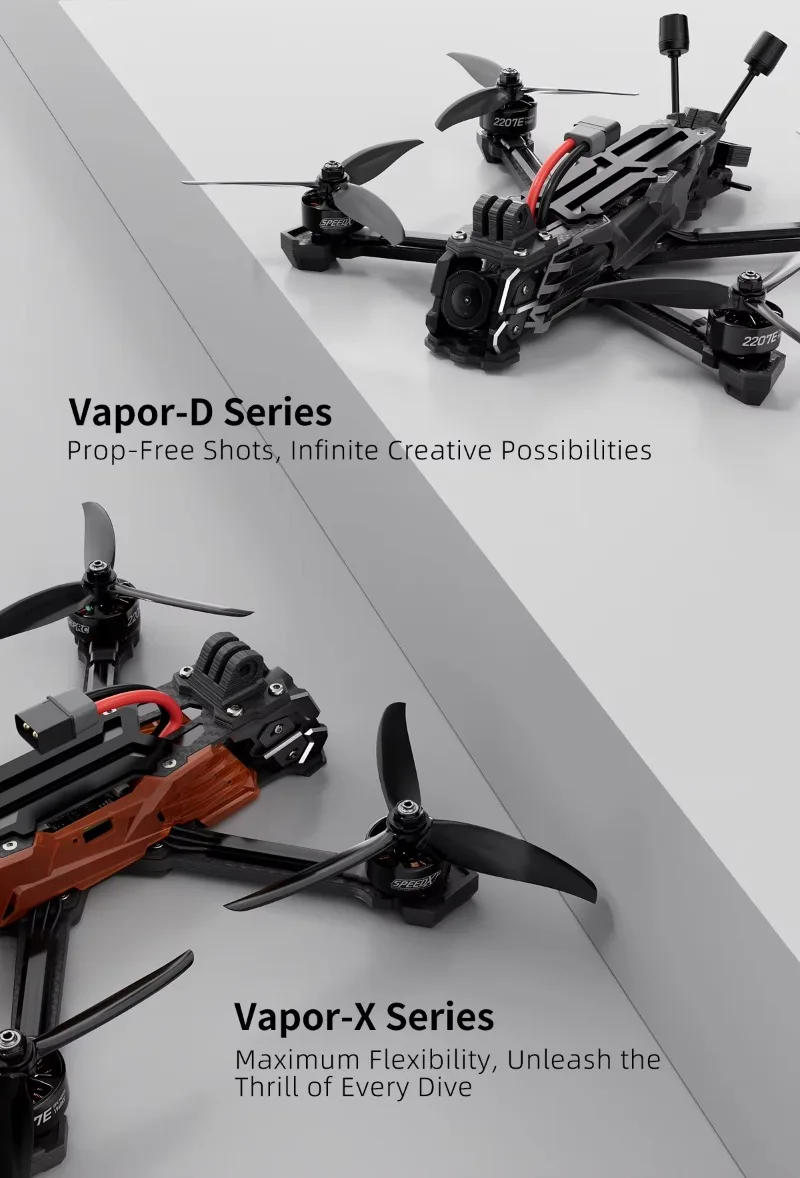

Available in two models, Wide X and DC, to suit different flight needs.
Feature
-

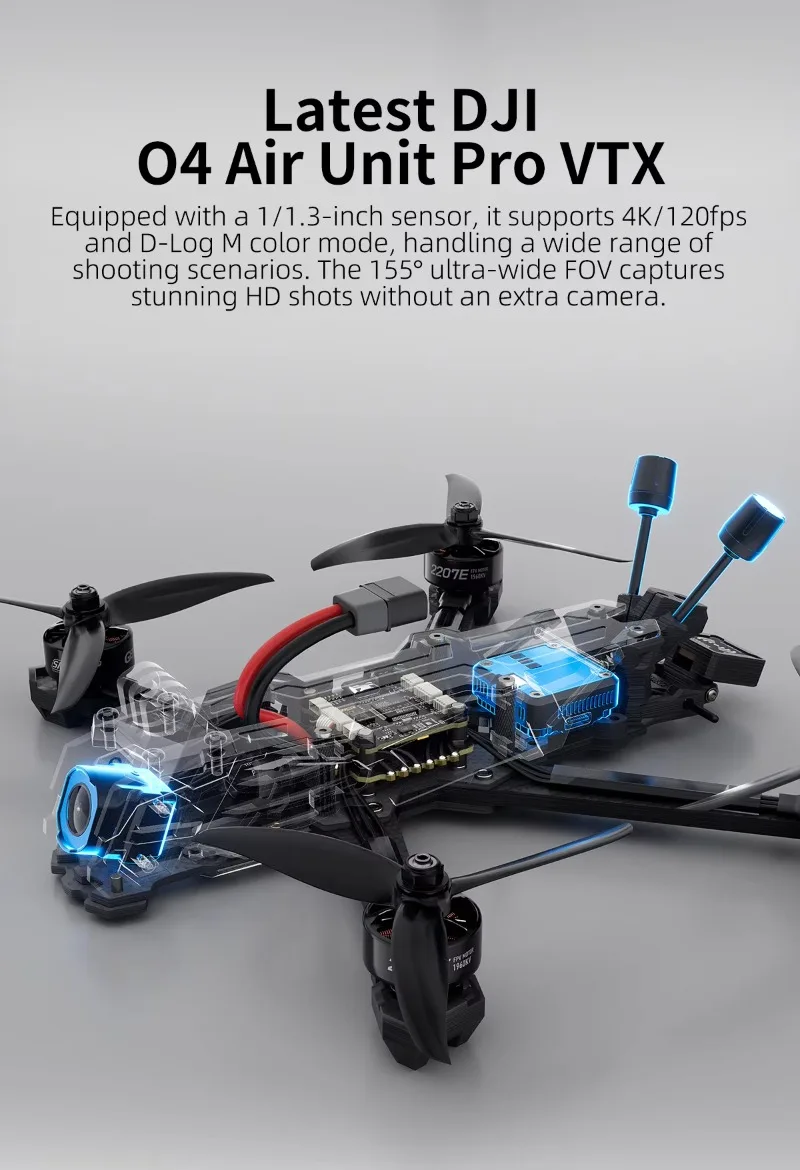

DJI O4 Air Unit Pro features a powerful CMOS sensor for improved image clarity and enhanced light sensitivity.
-
CNC aluminum lens housing for a durable, bold design.
-
GEPRC SPEEDX2 E-series motors for smooth, powerful performance.
-
Front lip design provides extra lens protection for confident flying.
-

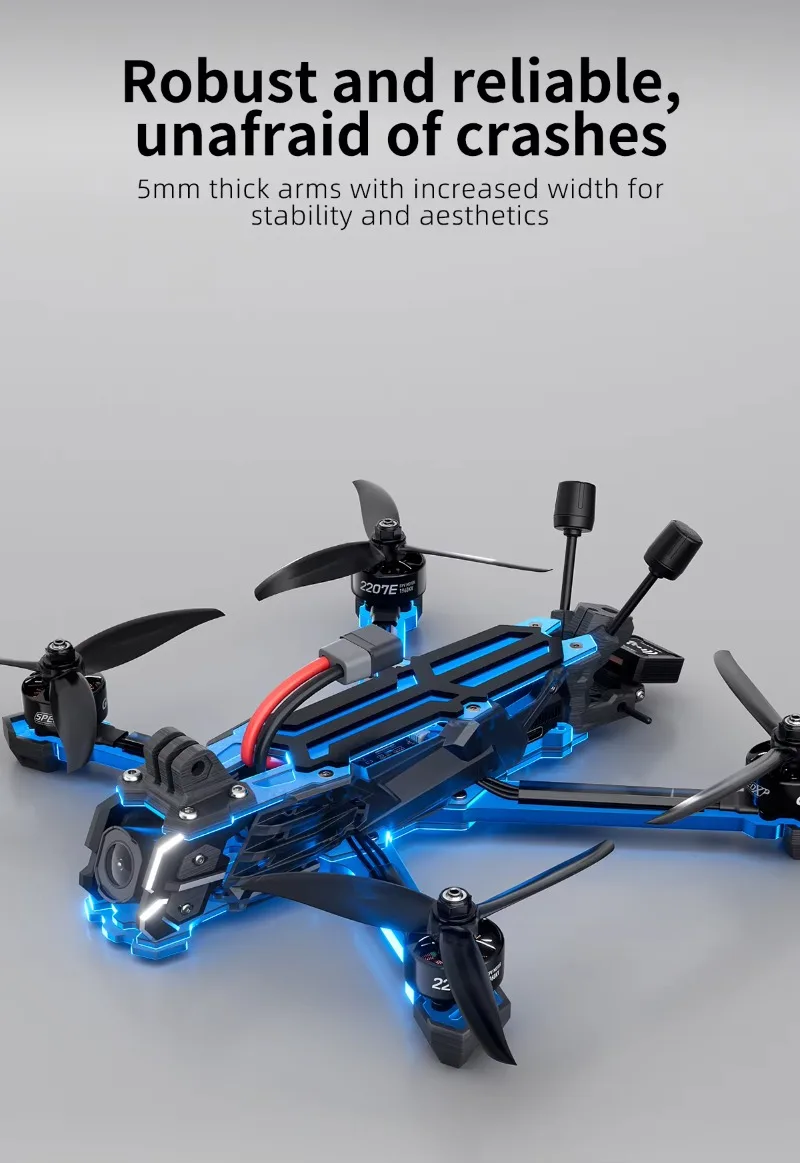

Wider 5mm carbon fiber arms for increased durability and a sleek build.

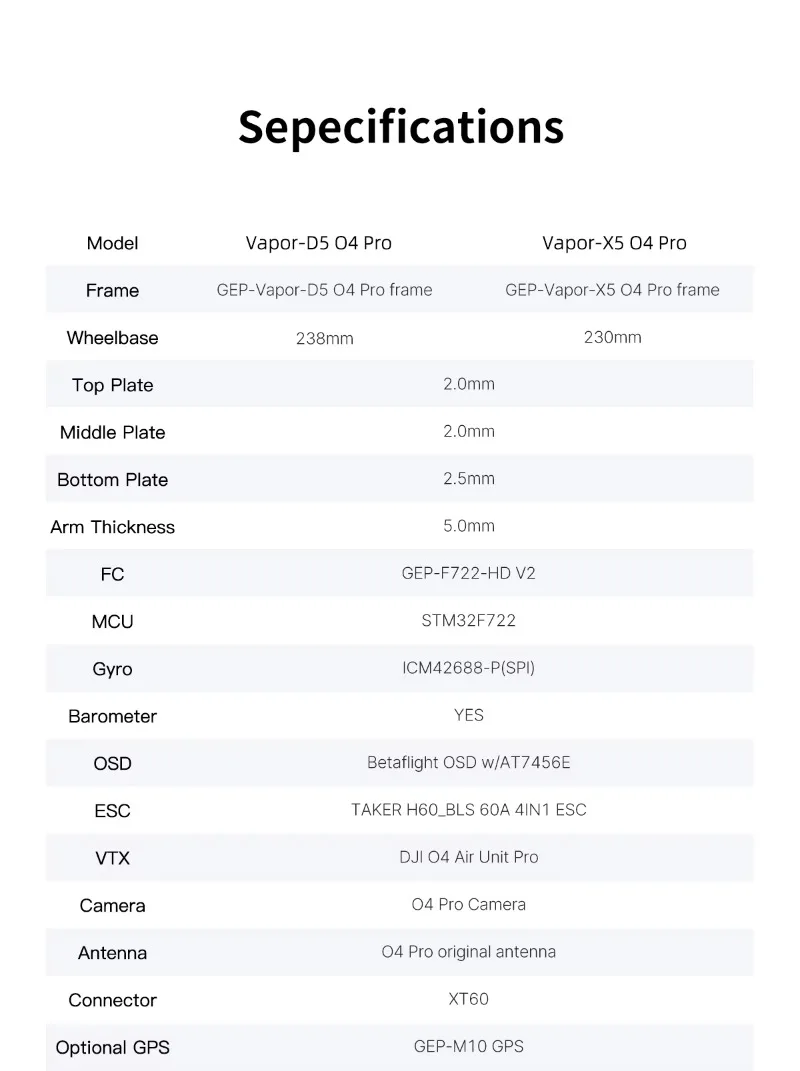

Specifications
-
Model: Vapor-D5 O4 Pro
-
Frame: GEP-Vapor-D5 O4 Pro frame
-
Wheelbase: 230 mm
-
Top Plate: 2.0 mm
-
Middle Plate: 2.0 mm
-
Bottom Plate: 2.5 mm
-
Arm Thickness: 5.0 mm
-
FC: GEP-F722-HD v2
-
MCU: STM32F722
-
Gyro: ICM42688-P(SPI)
-
Barometer: YES
-
OSD: Betaflight OSD w/AT7456E
-
ESC: TAKER H60_BLS 60A 4IN1 ESC
-
VTX: DJI O4 Air Unit Por
-
Camera: O4 Pro Camera
-
Antenna: O4 Pro original antenna
-
Connector: XT60
-
Optional GPS: GEP-M10 GPS
-

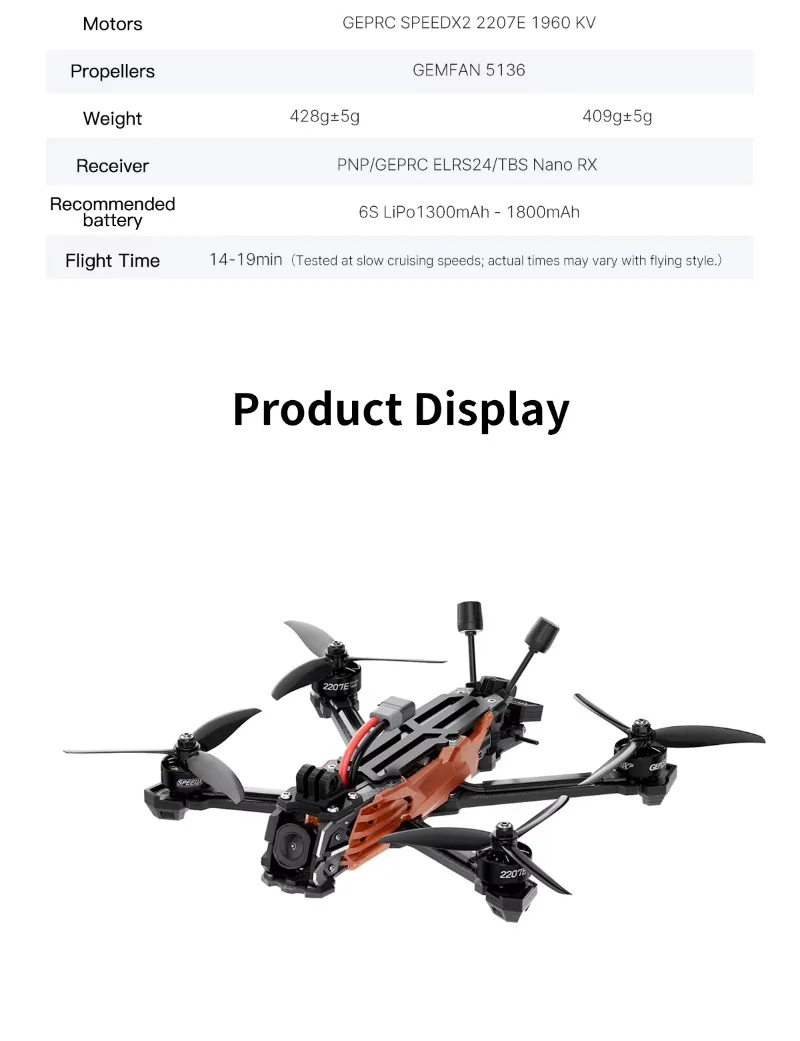

5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
-
5-inch Propeller: GEMFAN 5136
-
Vapor-D5 O4 Pro PNP Version Weight: 428 g±5g
-
Receiver: PNP/GEPRC ELRS24/TBS Nano RX
-
Recommended Battery: 6S LiPo1300mAh – 1800mAh
-
Flight Time: 14-19 min
Includes
The spare screws include
